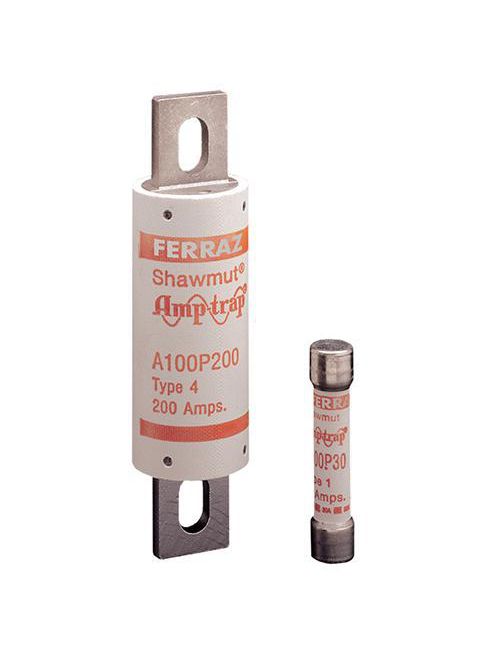

FERRAZ A100P1000-4 1000V 1000A SEMI

Features

• Low I2t minimizes damage to protected components on short circuit
• Controlled arc voltage reduces stress to circuit components during fuse clearing
• Wide range of ampere ratings

Applications

• Protection of UPS systems AC/DC drives, reduced voltage motor starters and other 1000V or less semiconductor devices

Approvals & Standards

• UL recognized component File E60314
• AC: UL guide no. JFHR2 (35-600A)
• DC: self-certified

Specifications

• Rated voltage AC UL: 1000 V
• Ampere Rating: 1000 A
• ROHS Compliant: Yes
• Speed/Characteristic: High Speed
• Mounting: Bolted
• AC Max I.R./Breaking Capacity: I1: 50 kA
• Connection/Terminal Material: Silver-Plated Copper
• Connection/Terminal Type: Bolted
• Body/Insulating Material: GMG

Product Dimensions

• Product Weight: 8 lb
• Product Diameter: 3.5 in
• Product Length: 8.22 in

Packaging Dimensions

• Sell Pack Quantity: 1 Each
• Sell Pack Weight: 8.4 lb
• Sell Pack Width: 3.75 in
• Sell Pack Length: 12 in
• Sell Pack Height: 3.81 in
