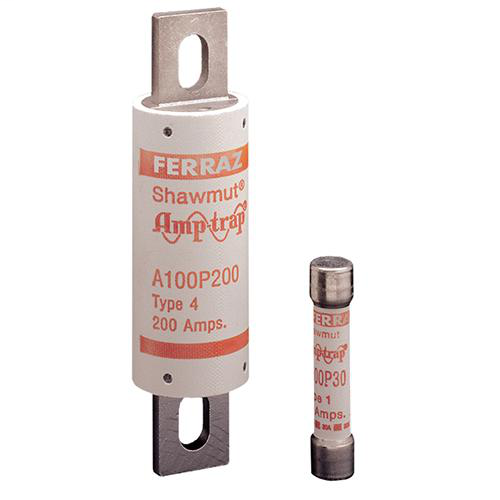

FERRAZ A100P20-1 1000V 20A SEMICOND
$52.24/ea
Usually ships within 8 to 12 Days
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Mersen
Mfg Catalog # A100P20-1
North Coast Part # 602909

Features

  • Low I2t minimizes damage to protected components on short circuit
  • Controlled arc voltage reduces stress to circuit components during fuse clearing
  • Wide range of ampere ratings

Applications

  • Protection of UPS systems AC/DC drives, reduced voltage motor starters and other 1000V or less semiconductor devices

Approvals & Standards

  • UL recognized component File E60314
  • AC: UL guide no. JFHR2 (35-600A)
  • DC: self-certified

Specifications

  • Rated voltage AC UL: 1000 V
  • Ampere Rating: 20 A
  • Speed/Characteristic: High Speed
  • Mounting: Clip
  • AC Max I.R./Breaking Capacity: I1: 200 kA
  • Connection/Terminal Material: Tin-Plated Copper
  • Connection/Terminal Type: Ferrule
  • Body/Insulating Material: GMG

Product Dimensions

  • Product Weight: 0.06 lb
  • Product Diameter: 0.56 in
  • Product Length: 2.63 in

Packaging Dimensions

  • Sell Pack Quantity: 20 Each
  • Sell Pack Weight: 1.26 lb
  • Sell Pack Width: 3.12 in
  • Sell Pack Length: 4.25 in
  • Sell Pack Height: 1.69 in

Categories

Overview

UPC 78200194951
Family Brand Name Ferraz Shawmut
GTiN 00782001949518
Length 2.63 in
Type North American Round Style
Diameter 0.56 in
Terminal Type Ferrule
Applications Protection of UPS systems AC/DC drives, reduced voltage motor starters and other 1000V or less semiconductor devices
Mounting Type Clip
Weight 0.06 lb
Pkg Qty 20
Insulation Material GMG
TC Connection Ferrule
Amperage 20 Amp
Terminal Material Tin-Plated Copper
Rated Voltage AC 1000 V
Voltage null
