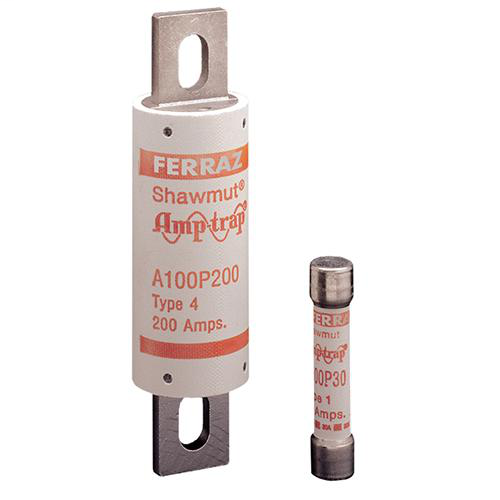

FERRAZ A100P35-4TA 94097 AT-FORM 10

Features

• Low I2t minimizes damage to protected components on short circuit
• Controlled arc voltage reduces stress to circuit components during fuse clearing
• Wide range of ampere ratings

Applications

• Protection of UPS systems AC/DC drives, reduced voltage motor starters and other 1000V or less semiconductor devices

Specifications

• Sell Pack Height: 2.75 in
• Product Weight: 0.35 lb
• Product Diameter: 1 in
• Product Length: 5 in
• Mounting: Bolted
• AC Max I.R./Breaking Capacity: I1: 200 kA
• ROHS Compliant: Yes
• Sell Pack Weight: 3.68 lb
• Indication System: Yes
• Sell Pack Width: 5 in
• Sell Pack Length: 7.5 in
• Body/Insulating Material: GMG
• Connection/Terminal Type: Bolted
• Sell Pack Quantity: 10 Each
• Indication System Type: TA Indicator
• Speed/Characteristic: High Speed
• Ampere Rating: 35 A
• Connection/Terminal Material: Tin-Plated Brass
• Rated voltage AC UL: 1000 V

Approvals & Standards

• UL recognized component File E60314
• AC: UL guide no. JFHR2 (35-600A)
• DC: self-certified
