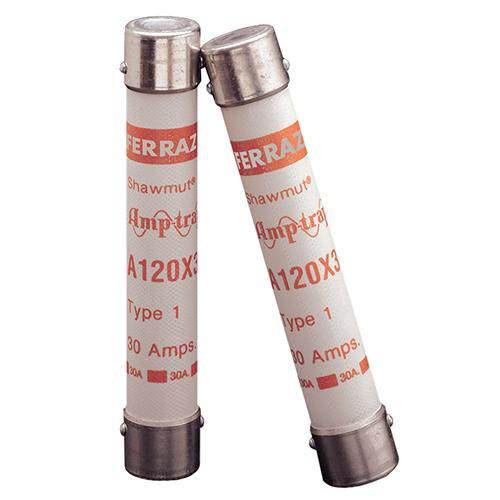

FERRAZ A120X5-1 94471-FUSE, FORM 10
Product image thumbnail 0
Product image thumbnail 1
Product image thumbnail 2
$159.57/ea
Usually ships within 8 to 12 Days
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Mersen
Mfg Catalog # A120X5-1
North Coast Part # 602943

Features

  • 1000V DC rated for wide range of circuits
  • Compact size fits in where competitive sizes will not fit

Certifications

  • UL recognized component File E 60314

Specifications

  • Max Operating Temp: 80 °C
  • Max Storage Temp: 80 °C
  • Min Storage Temp: -25 °C
  • Ampere Rating: 5 A
  • Rated Voltage Ac Ul: 1200 V
  • Ac Max I R Breaking Capacity I1: 200 kA
  • Product Diameter: 0.81 in
  • Country Of Origin: MX
  • Product Line: Amp-Trap® A120X 1200VAC 1000VDC
  • Product Brand: Amp-Trap®
  • Body Insulating Material: GMG
  • Connection Terminal Material: Tin-Plated Copper
  • Connection Terminal Type: Ferrule
  • Speed Characteristic: High Speed
  • Mounting: Clip

Overview

UPC 78200194471
Family Brand Name Ferraz Shawmut
Item Long Description A120X Amp-Trap Form 101 high speed fuses, rated 1/2A through 30A, 1200VAC are popular for use in traction drive auxiliary circuits and similar applications. A120X fuses are also suitable for use on 1000VDC auxiliary circuits with low time constants.
GTiN 00782001944711
Length 4.63 in
Type North American Round Style
Diameter 0.81 in
Terminal Type Ferrule
Applications Protection of traction drive auxiliary circuits, etc.
Mounting Type Clip
Weight 0.2 lb
Pkg Qty 10
Insulation Material GMG
TC Connection Ferrule
Amperage 5 Amp
Terminal Material Tin-Plated Copper
Rated Voltage AC 1200 V
Voltage 1200 Volt
Country of Origin Mexico
Max Operating Temperature 80 C
