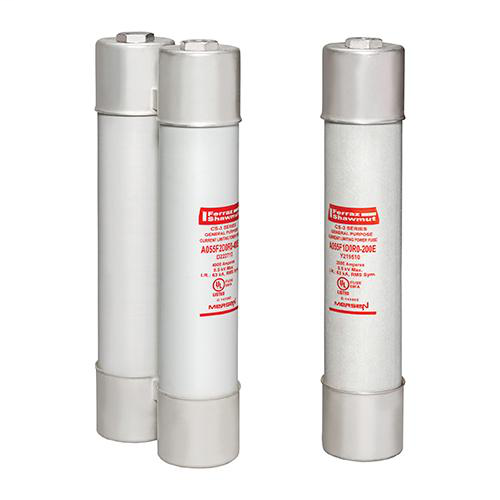

FERRAZ A155F1C0R0-5E 15.5 KV 5E RAT

Features

• Amp-Trap CS-3 and 9F62 series are UL listed for compatibility with UL listed equipment
• Ferrule mounting for standard clips and interchangeability with other brands of fuses
• Current-limiting for superior equipment protection
• Non-venting for silent operation
• Metal embossed catalog number and manufacturing date for lasting identification
• Outdoor usage for the 9F62 and 9F60 type EJO
• Blown-fuse indicator to give positive identification of open fuse: Amp-Trap: 2" Barrel 1 lb tripped force - 0.19 Inch; Amp-Trap: 3" Barrel 2 lb tripped force - 0.50 Inch; 9F60/9F62: 0.125 lb tripped force – 0.20 Inch

Applications

• Protection for 12 kV to 15.5 kV transformers or distribution systems.

Approvals & Standards

• Some UL listed to standard File E143362

Specifications

• Rated voltage AC UL: 15500 V
• Frequency: 50/60 Hz
• Ampere Rating: 5 A
• Speed/Characteristic: E-Rated
• Mounting: Clip
• AC Max I.R./Breaking Capacity: I1: 50 kA
• Indication System: Yes
• Indication System Type: Visual Indicator
• Connection/Terminal Material: Silver-Plated Copper
• Connection/Terminal Type: Ferrule
• Body/Insulating Material: GMG

Product Dimensions

• Product Weight: 5 lb
• Product Diameter: 2 in
• Product Length: 17.03 in

Packaging Dimensions

• Sell Pack Quantity: 1 Each
• Sell Pack Weight: 5.25 lb
• Sell Pack Width: 4 in
• Sell Pack Length: 4 in
• Sell Pack Height: 19.5 in
