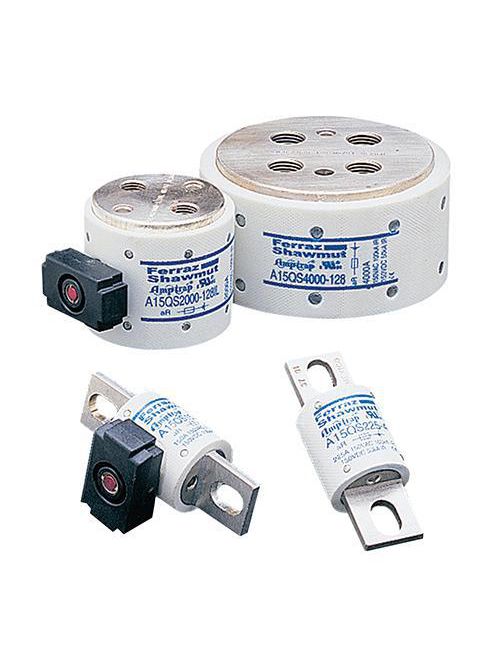

Ferraz Shawmut A15QS175-4 28.7 x 67.6 mm 175 Amp 150 Volt Semiconductor Protection Fuse
Product image thumbnail 0
Product image thumbnail 1
Usually ships within 8 to 12 Days
Already a Customer? Log in to view your pricing
Manufacturer Mersen
Mfg Catalog # A15QS175-4
North Coast Part # 602985


  • Low I²t minimizes damage to protected components on short circuit *Controlled arc voltage reduces stress to circuit components during fuse clearing
  • Choice of mounting types provides options for unique termination requirements


  • Protection of heavy duty devices such as electrochemical rectifiers

Approvals & Standards

  • UL recognized component UL File E60314
  • AC: UL guide no. JFHR2 (1-4000A)
  • DC tested to UL standard 198L parameters (1-4000A)


  • Rated voltage AC UL: 150 V
  • Rated voltage DC UL: 150 V
  • Ampere Rating: 175 A
  • ROHS Compliant: Yes
  • Speed/Characteristic: High Speed
  • Mounting: Bolted
  • AC Max I.R./Breaking Capacity: I1: 200 kA
  • Connection/Terminal Material: Tin-Plated Brass
  • Connection/Terminal Type: Blade
  • Body/Insulating Material: GMG

Product Dimensions

  • Product Weight: 0.17 lb
  • Product Diameter: 1.13 in
  • Product Length: 2.66 in

Packaging Dimensions

  • Sell Pack Quantity: 10 Each
  • Sell Pack Weight: 1.79 lb
  • Sell Pack Width: 3.19 in
  • Sell Pack Length: 6.5 in
  • Sell Pack Height: 2.5 in


UPC 78200130608
Family Brand Name Ferraz Shawmut
GTiN 00782001306083
Length 2.66 in
Type North American Round Style
Diameter 1.13 in
Terminal Type Blade
Applications Protection of AC/DC drives, UPS, Rectifiers and other equipment of 150 volts or less
Mounting Type Bolted
Weight 0.17 lb
Pkg Qty 10
Insulation Material GMG
TC Connection Blade
Amperage 175 Amp
Terminal Material Tin-Plated Brass
Rated Voltage AC 150 V
Rated Voltage DC 150 V
Voltage 150 VAC
