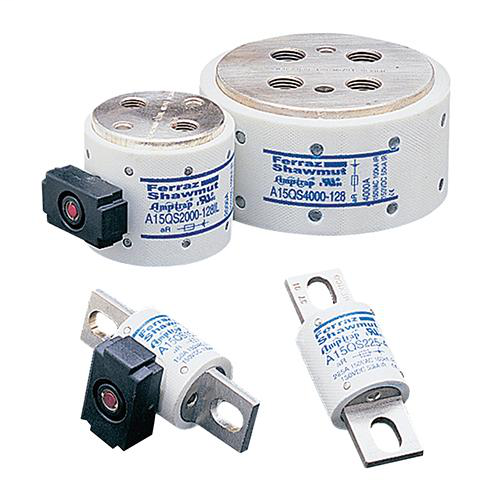

FERRAZ A15QS30-4TI 150V 30A SEMICON

Features

• Low I²t minimizes damage to protected components on short circuit *Controlled arc voltage reduces stress to circuit components during fuse clearing
• Choice of mounting types provides options for unique termination requirements

Applications

• Protection of heavy duty devices such as electrochemical rectifiers

Specifications

• Sell Pack Height: 2.5 in
• Product Weight: 0.17 lb
• Product Diameter: 1.13 in
• Product Length: 2.66 in
• Mounting: Bolted
• Ampere Rating: 30 A
• AC Max I.R./Breaking Capacity: I1: 200 kA
• ROHS Compliant: Yes
• Sell Pack Weight: 1.79 lb
• Indication System: Yes
• Sell Pack Width: 3.19 in
• Sell Pack Length: 6.5 in
• Body/Insulating Material: GMG
• Connection/Terminal Type: Blade
• Sell Pack Quantity: 10 Each
• Indication System Type: TI Indicator
• Speed/Characteristic: High Speed
• Connection/Terminal Material: Tin-Plated Brass
• Rated voltage AC UL: 150 V
• Rated voltage DC UL: 150 V

Approvals & Standards

• UL recognized component UL File E60314
• AC: UL guide no. JFHR2 (1-4000A)
• DC tested to UL standard 198L parameters (1-4000A)
