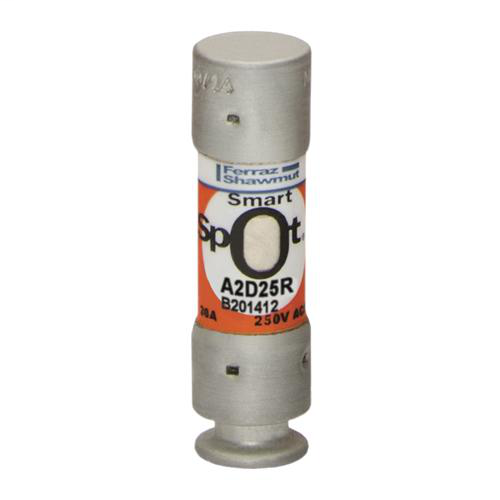

Ferraz Shawmut A2D25R 25 Amp 250 Volt Class RK1 Time Delay Fuse
Product image thumbnail 0
Product image thumbnail 1
Product image thumbnail 2
Product image thumbnail 3
$10.61/ea
Usually ships within 8 to 12 Days
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Mersen
Mfg Catalog # A2D25R
North Coast Part # 158839

Features

  • Solid state SmartSpot visual blown fuse indicator
  • Time-delay for motor starting and transformer inrush currents without nuisance opening
  • 600VAC & 600VDC dual rated
  • 300kA interrupting rating - self-certified, UL witnessed tests
  • Extremely current-limiting for low peak let-thru current
  • Recommended for Arc Flash energy reduction
  • Easy 2-to-1 selectivity for prevention of nuisance shut downs and “black outs”
  • Rejection-style design prevents replacement errors (when used with recommended fuse blocks)
  • High-visibility orange label gives instant brand recognition
  • Reduced inventory by taking the place of class RK5, K, and H fuses
  • Metal-embossed date and catalog number for easier traceability and lasting identification
  • Fiberglass body provides dimensional stability in harsh industrial settings

Applications

  • Motors
  • Safety switches
  • Transformers
  • Branch circuit protection
  • Disconnects
  • Control panels
  • All general-purpose circuits

Approvals & Standards

  • UL listed to standard 248-12 File E2137
  • DC listed to UL standard 248
  • CSA certified to standard C22.2 No. 248.12

Specifications

  • Rated voltage AC UL: 250 V
  • Rated voltage DC UL: 250 V
  • Ampere Rating: 25 A
  • ROHS Compliant: Yes
  • Fuse Class: Class RK1
  • Speed/Characteristic: Time Delay
  • Mounting: Clip
  • AC Max I.R./Breaking Capacity: I1: 200 kA
  • Indication System: Yes
  • Indication System Type: SmartSpot®
  • Connection/Terminal Material: Tin-Plated Copper
  • Connection/Terminal Type: Ferrule
  • Body/Insulating Material: PolyTube

Product Dimensions

  • Product Weight: 0.04 lb
  • Product Diameter: 0.56 in
  • Product Length: 2 in

Packaging Dimensions

  • Sell Pack Quantity: 10 Each
  • Sell Pack Weight: 0.42 lb
  • Sell Pack Width: 2.06 in
  • Sell Pack Length: 3 in
  • Sell Pack Height: 1.19 in

Categories

Overview

UPC 78200199085
Family Brand Name Ferraz Shawmut
Item Long Description Amp-Trap 2000 SmartSpot time-delay A2D-R fuses provide IEC Type 2 "no damage" protection to existing mains, feeders, and branch circuits serving motor and non-motor loads. A2D-R fuses will open fast enough under extreme fault conditions for maximum short circuit protection to prevent damage to motor starters, switches, and other circuit components, yet also provide the time-delay needed for motor in-rush currents. A2D-R fuses can be used to replace older 250V Class H, K or RK5 fuses already installed in the field.
GTiN 00782001990855
Length 2 in
Type North American, Time Delay
Diameter 0.56 in
Terminal Type Ferrule
Applications Motors Safety Switches Transformers Disconnects Control Panels All General-Purpose Circuits
Mounting Type Clip
Weight 0.04 lb
Pkg Qty 10
Class RK-1
Insulation Material PolyTube
TC Connection Ferrule
Amperage 25 Amp
Interrupt Rating 200 kA
Indicator SmartSpot
Terminal Material Tin-Plated Copper
Sub Brand Amp-Trap 2000, SmartSpot
Rated Voltage AC 250 V
Rated Voltage DC 250 V
Fuse Class Class RK1
Voltage 250 VAC
