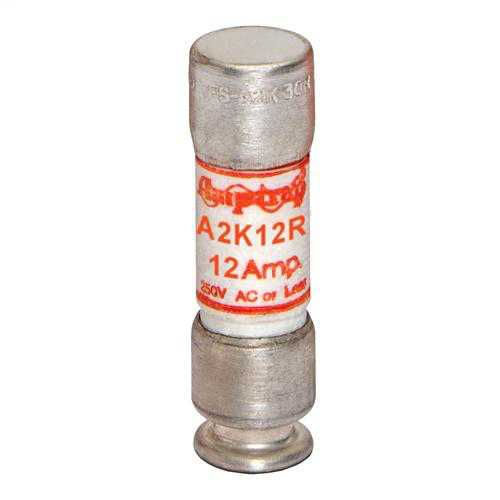

FERRAZ A2K12R 250V 12A RK1 FUSE

Features

• Rejection style design prevents replacement by other fuse classes
• Fiberglass body provides dimensional stability in harsh industrial environments
• Easy-to-read imprint label for quick recognition and replacement
• High degree of current limitation for low peak let-thru current

Applications

• Load centers
• Panelboards
• Switchboards
• Bus duct
• Feeder circuits
• Non-inductive loads
• Lighting circuits

Approvals & Standards

• UL listed to standard 248-12 File E2137
• CSA certified to standard C22.2 No. 248.12
• Self-certified for DC per UL248

Specifications

• Rated voltage AC UL: 250 V
• Rated voltage DC UL: 250 V
• Ampere Rating: 12 A
• ROHS Compliant: Yes
• Fuse Class: Class RK1
• Speed/Characteristic: Fast-Acting
• Mounting: Clip
• AC Max I.R./Breaking Capacity: I1: 200 kA
• Connection/Terminal Material: Tin-Plated Copper
• Connection/Terminal Type: Ferrule
• Body/Insulating Material: GMG

Product Dimensions

• Product Weight: 0.05 lb
• Product Diameter: 0.56 in
• Product Length: 2 in

Packaging Dimensions

• Sell Pack Quantity: 10 Each
• Sell Pack Weight: 0.53 lb
• Sell Pack Width: 2.06 in
• Sell Pack Length: 3 in
• Sell Pack Height: 1.19 in
