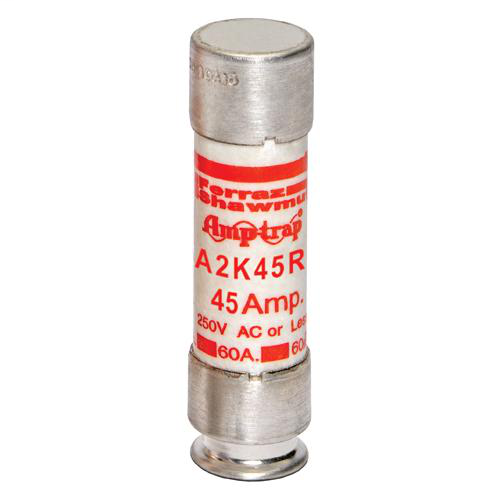

FERRAZ A2K45R 250V 45A RK1 FUSE
$38.55/ea
Usually ships within 8 to 12 Days
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Mersen
Mfg Catalog # A2K45R
North Coast Part # 214442

Features

  • Rejection style design prevents replacement by other fuse classes
  • Fiberglass body provides dimensional stability in harsh industrial environments
  • Easy-to-read imprint label for quick recognition and replacement
  • High degree of current limitation for low peak let-thru current

Applications

  • Load centers
  • Panelboards
  • Switchboards
  • Bus duct
  • Feeder circuits
  • Non-inductive loads
  • Lighting circuits

Specifications

  • Sell Pack Height: 1.69 in
  • Product Weight: 0.14 lb
  • Product Diameter: 0.81 in
  • Product Length: 3 in
  • Mounting: Clip
  • Ampere Rating: 45 A
  • AC Max I.R./Breaking Capacity: I1: 200 kA
  • ROHS Compliant: Yes
  • Sell Pack Weight: 1.47 lb
  • Sell Pack Width: 3.12 in
  • Sell Pack Length: 4.25 in
  • Body/Insulating Material: PolyTube
  • Connection/Terminal Type: Ferrule
  • Sell Pack Quantity: 10 Each
  • Speed/Characteristic: Fast-Acting
  • Fuse Class: Class RK1
  • Connection/Terminal Material: Tin-Plated Copper
  • Rated voltage AC UL: 250 V
  • Rated voltage DC UL: 250 V

Approvals & Standards

  • UL listed to standard 248-12 File E2137
  • CSA certified to standard C22.2 No. 248.12
  • Self-certified for DC per UL248
  • Approvals & Standards

Overview

UPC 78200191514
Family Brand Name Ferraz Shawmut
GTiN 00782001915148
Length 3 in
Type Fast Acting
Diameter 0.81 in
Terminal Type Ferrule
Applications For Load Centers, Panelboards, Switchboards, Bus Duct, Feeder Circuits, Non-Inductive Loads, Lighting Circuits
Mounting Type Clip
Weight 0.14 lb
Pkg Qty 10
Class RK-1
Insulation Material PolyTube
Construction Fiberglass
Contact Material Tin Plated Copper
TC Connection Ferrule
Amperage 45 Amp
Blade Dimensions 13/16 in dia x 3 in L
Interrupt Rating 200 kA at AC, 20 kA at DC
Terminal Material Tin-Plated Copper
Rated Voltage AC 250 V
Rated Voltage DC 250 V
Fuse Class Class RK1
