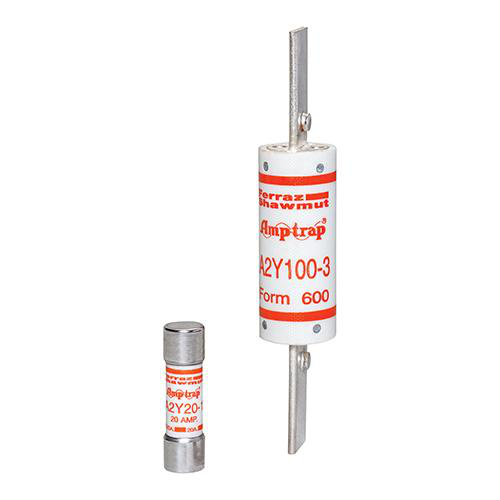

FERRAZ A2Y20-1 500V DC SPECIAL FUSE
Product image thumbnail 0
Product image thumbnail 1
Product image thumbnail 2
$56.11/ea
Usually ships within 8 to 12 Days
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Mersen
Mfg Catalog # A2Y20-1
North Coast Part # 673383

Features

Certifications

  • UL Recognized Component File E60314
  • DC Tested to UL248-1 (1-600A)

Specifications

  • Max Operating Temp: 80 °C
  • Max Storage Temp: 80 °C
  • Min Storage Temp: -25 °C
  • Ampere Rating: 20 A
  • Rated Voltage Ac Ul: 250 V
  • Rated Voltage Dc Ul: 500 V
  • Ac Max I R Breaking Capacity I1: 200 kA
  • Product Diameter: 0.56 in
  • Country Of Origin: MX
  • Product Line: A2Y
  • Product Brand: Amp-Trap®
  • Body Insulating Material: GMG
  • Connection Terminal Material: Tin-Plated Copper
  • Connection Terminal Type: Ferrule
  • Mounting: Clip

Overview

Family Brand Name Ferraz Shawmut
Product UPC 78200190159
GTiN 00782001901592
Length 2 Inch
Type Form 600
Diameter 0.56 in
Terminal Type Ferrule
Mounting Type Clip
Weight 0.04 lb
Pkg Qty 10
Insulation Material GMG
TC Connection Ferrule
Amperage 20 Amp
Interrupt Rating 200 kA
Terminal Material Tin-Plated Copper
Rated Voltage AC 250 V
Rated Voltage DC 500 V
Voltage 250 Volt
Frequency 50 Hz
Country of Origin Mexico
Max Operating Temperature 80 C
