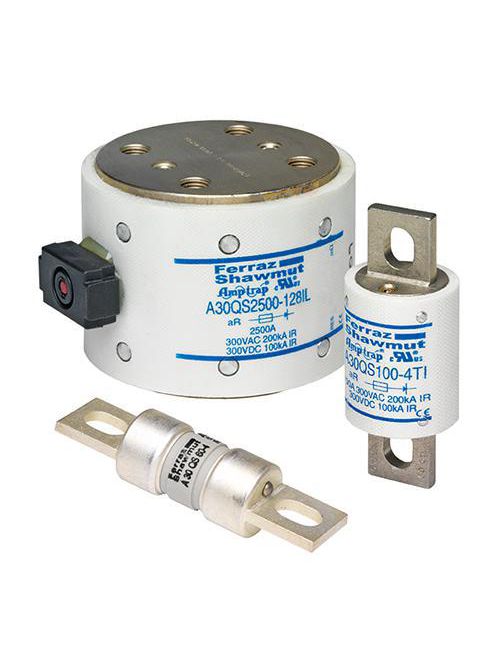

Ferraz Shawmut A30QS125-4 31 x 80 mm 125 Amp 300 Volt Semiconductor Protection Fuse
Product image thumbnail 0
Product image thumbnail 1
$98.85/ea
Usually ships within 8 to 12 Days
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Mersen
Mfg Catalog # A30QS125-4
North Coast Part # 156338

Features

  • Low I2t minimizes damage to protected component on short circuit
  • Controlled arc voltage reduces stress to circuit components during fuse clearing
  • Choice of mounting types helps in equipment design

Applications

  • Protection of 300V (or less) heavy duty rectifiers and similar heavy duty power supplies

Approvals & Standards

  • UL recognized component UL File E60314
  • AC: UL guide no. JFHR2 (35-4500A)

Specifications

  • Rated voltage AC UL: 300 V
  • Rated voltage DC UL: 300 V
  • Ampere Rating: 125 A
  • ROHS Compliant: Yes
  • Speed/Characteristic: High Speed
  • Mounting: Bolted
  • AC Max I.R./Breaking Capacity: I1: 63 kA
  • Connection/Terminal Material: Tin-Plated Brass
  • Connection/Terminal Type: Blade
  • Body/Insulating Material: GMG

Product Dimensions

  • Product Weight: 0.3 lb
  • Product Diameter: 1.22 in
  • Product Length: 3.13 in

Packaging Dimensions

  • Sell Pack Quantity: 10 Each
  • Sell Pack Weight: 3.15 lb
  • Sell Pack Width: 3.19 in
  • Sell Pack Length: 6.5 in
  • Sell Pack Height: 2.5 in

Categories

Overview

UPC 78200128075
Family Brand Name Ferraz Shawmut
GTiN 00782001280758
Length 3.13 in
Type High Speed, Fast Acting, Current Limiting, Form 101
Diameter 1.22 in
Terminal Type Blade
Applications For Protection of AC/DC Drives, UPS and Other Equipment of 300 V or Less
Mounting Type Bolt-In
Weight 0.3 lb
Pkg Qty 10
Insulation Material GMG
Construction GMG
Contact Material Tin Plated Brass
TC Connection Blade
Amperage 125 Amp
Response Time 10 Millisecond
Blade Dimensions 1.22 in dia x 3.13 in L
Interrupt Rating 200 kA
Terminal Material Tin-Plated Brass
Sub Brand Amp-Trap
Rated Voltage AC 300 V
Rated Voltage DC 300 V
Voltage 300 VAC, 300 VDC
