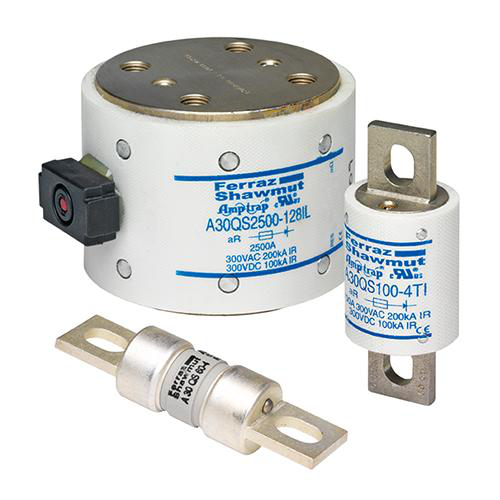

FERRAZ A30QS4000-128 300V 4000A SEM

Features

• Low I2t minimizes damage to protected component on short circuit
• Controlled arc voltage reduces stress to circuit components during fuse clearing
• Choice of mounting types helps in equipment design

Applications

• Protection of 300V (or less) heavy duty rectifiers and similar heavy duty power supplies

Specifications

• Sell Pack Height: 2.75 in
• Product Weight: 7.3 lb
• Product Diameter: 4.5 in
• Product Length: 2.59 in
• Mounting: Bolted
• Ampere Rating: 4000 A
• AC Max I.R./Breaking Capacity: I1: 50 kA
• ROHS Compliant: Yes
• Sell Pack Weight: 7.67 lb
• Sell Pack Width: 5 in
• Sell Pack Length: 7.5 in
• Body/Insulating Material: GMG
• Connection/Terminal Type: Hockey Puck, Bolt-In
• Sell Pack Quantity: 1 Each
• Speed/Characteristic: High Speed
• Connection/Terminal Material: Silver-Plated Brass
• Rated voltage AC UL: 300 V
• Rated voltage DC UL: 300 V

Approvals & Standards

• UL recognized component UL File E60314
• AC: UL guide no. JFHR2 (35-4500A)
• Approvals & Standards
