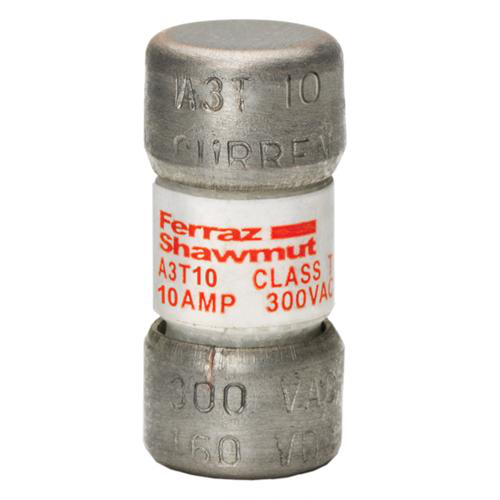

FERRAZ A3T10 300V 10A T FUSE

Features

• Extremely current-limiting for low peak let-thru current
• Unique dimensions prevent replacement by other fuse classes
• Blade-stamped catalog numbers for permanent identification
• Small physical size for greater design flexibility

Applications

• Load centers
• Panelboards
• Switchboards
• Circuit breakers
• Metering centers

Specifications

• Sell Pack Height: 0.9 in
• Product Weight: 0.01 lb
• Product Diameter: 0.41 in
• Product Length: 0.88 in
• Mounting: Clip
• Ampere Rating: 10 A
• AC Max I.R./Breaking Capacity: I1: 200 kA
• ROHS Compliant: Yes
• Sell Pack Weight: 0.11 lb
• Sell Pack Width: 0.9 in
• Sell Pack Length: 2.09 in
• Body/Insulating Material: GMG
• Connection/Terminal Type: Ferrule
• Sell Pack Quantity: 10 Each
• Speed/Characteristic: Fast-Acting
• Fuse Class: Class T
• Connection/Terminal Material: Copper
• Rated voltage AC UL: 300 V
• Rated voltage DC UL: 160 V

Approvals & Standards

• UL listed to standard 248-15 File E2137
• CSA certified to standard C22.2 no. 248.15
• DC listed to UL standard 248
