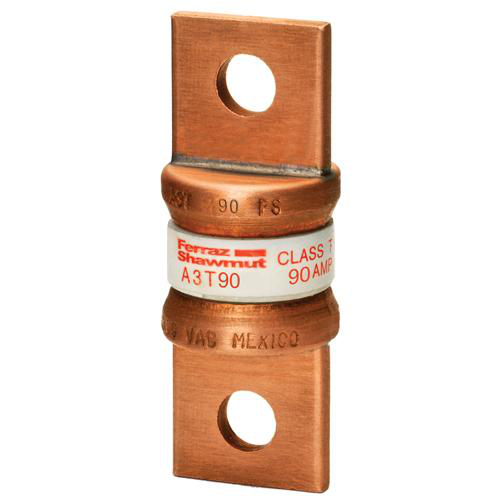

FERRAZ A3T90 300V 90A T FUSE

Features

• Extremely current-limiting for low peak let-thru current
• Unique dimensions prevent replacement by other fuse classes
• Blade-stamped catalog numbers for permanent identification
• Small physical size for greater design flexibility

Applications

• Load centers
• Panelboards
• Switchboards
• Circuit breakers
• Metering centers

Approvals & Standards

• UL listed to standard 248-15 File E2137
• CSA certified to standard C22.2 no. 248.15
• DC listed to UL standard 248

Specifications

• Rated voltage AC UL: 300 V
• Rated voltage DC UL: 160 V
• Ampere Rating: 90 A
• ROHS Compliant: Yes
• Fuse Class: Class T
• Speed/Characteristic: Fast-Acting
• Mounting: Bolted
• AC Max I.R./Breaking Capacity: I1: 200 kA
• Connection/Terminal Material: Copper
• Connection/Terminal Type: Blade
• Body/Insulating Material: GMG

Product Dimensions

• Product Weight: 0.08 lb
• Product Diameter: 0.81 in
• Product Length: 2.16 in

Packaging Dimensions

• Sell Pack Quantity: 5 Each
• Sell Pack Weight: 0.42 lb
• Sell Pack Width: 0.94 in
• Sell Pack Length: 4.12 in
• Sell Pack Height: 2.31 in
