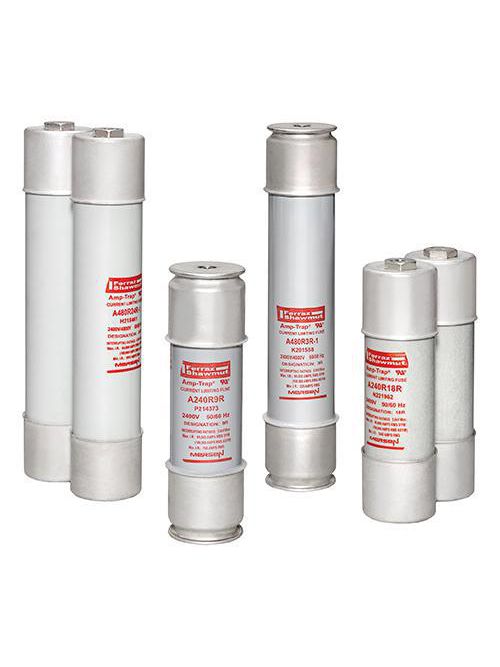

FERRAZ A480R3R-1HE 4800V R-RATED FU
Product image thumbnail 0
Product image thumbnail 1
Product image thumbnail 2
$1,559.70/ea
Usually ships within 8 to 12 Days
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Mersen
Mfg Catalog # A480R3R-1HE
North Coast Part # 824885

Features

  • The Amp-Trap and 9F60 R-Rated fuses are UL Recognized
  • Ferrule mounting for standard clips and interchangeability with other brands of fuses
  • Current-limiting for superior equipment protection
  • Metal embossed catalog number and manufacturing date for lasting identification
  • On the 4.8kV an optional hookeye mounted in the factory is available
  • On all other 3" barrels if a hookeye is required, use the operating eye 9F61AAW612
  • Blown-fuse indicator to give positive identification of open fuse

Certifications

  • Amp-Trap: UL File E93367
  • 9F60: UL File E191980

Specifications

  • Amp trap: 3" Barrel 2 lb tripped force - 0.50 Inch
  • 9F60: 0.125 lb tripped force – 0.20 Inch
  • Max Operating Temp: 80 °C
  • Max Storage Temp: 80 °C
  • Min Storage Temp: -25 °C
  • Rated Voltage Ac Ul: 4800 V
  • Ac Max I R Breaking Capacity I1: 50 kA
  • Product Diameter: 3 in
  • Country Of Origin: MX
  • Product Line: 5 kV Ferrule Mount Motor
  • Product Brand: Amp-Trap®
  • Body Insulating Material: Epoxy
  • Connection Terminal Material: Silver-Plated Copper
  • Connection Terminal Type: Ferrule
  • Speed Characteristic: R-Rated
  • Mounting: Clip

Overview

UPC 78200180144
Family Brand Name Ferraz Shawmut
Item Long Description Mersen R-Rated fuses are current-limiting, high interrupting rating fuses intended for the short circuit protection of medium voltage motors and motor controllers. R-Rated fuses are back-up fuses that have a minimum interrupting rating, and must be coordinated with overload relays in combination motor starters. The motor starter manufacturer generally specifies the R-Rated fuse size. These fuses come with a 3 (size D) or 4 (size E) inch diameter barrels with ferrules and are mounted in spring reinforced clips
GTiN 00782001801441
Length 16.13 in
Width 3 in
Type Back-up Current-limiting Fuses R-Rated
Diameter 3 in
Terminal Type Ferrule
Applications Short circuit protection of medium voltage motors and motor controllers.
Mounting Type Clip
Height 3 in
Weight 11.2 lb
Pkg Qty 1
Insulation Material Epoxy
TC Connection Ferrule
Indicator Visual Indicator
Terminal Material Silver-Plated Copper
Rated Voltage AC 4800 V
Voltage 4800 Volt
Country of Origin Mexico
Max Operating Temperature 80 C
