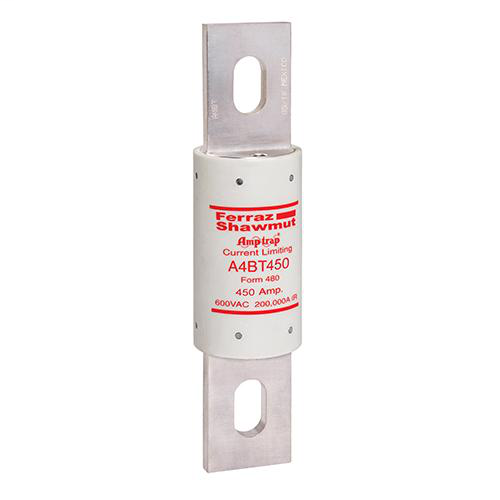

FERRAZ A4BT450 93979-FUSE,FORM 480
$472.25/ea
Usually ships within 8 to 12 Days
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Mersen
Mfg Catalog # A4BT450
North Coast Part # 603146

Features

  • Unique dimensions prevent replacement by other fuse classes.
  • Blade-stamped catalog numbers for permanent identification
  • Glass melamine body and plated terminals provide superior reliability in harsh environments

Applications

  • Motors
  • Motor controllers
  • Transformers
  • Mains
  • Feeders

Specifications

  • Sell Pack Height: 8.81 in
  • Product Weight: 2 lb
  • Product Diameter: 2 in
  • Product Length: 8.63 in
  • Mounting: Bolted
  • Ampere Rating: 450 A
  • AC Max I.R./Breaking Capacity: I1: 200 kA
  • Sell Pack Weight: 2.1 lb
  • Sell Pack Width: 2.12 in
  • Sell Pack Length: 2.12 in
  • Body/Insulating Material: GMG
  • Connection/Terminal Type: Blade
  • Sell Pack Quantity: 1 Each
  • Speed/Characteristic: Time Delay
  • Fuse Class: Class L
  • Connection/Terminal Material: Silver-Plated Copper
  • Rated voltage AC UL: 600 V
  • Rated voltage DC UL: 500 V

Approvals & Standards

  • UL Listed to Standard 248-10, File E2137
  • CSA Certified to Standard C22.2, No. 248.68
  • Self-certified for DC per UL248 (601-2000)
  • Approvals & Standards

Categories

Overview

UPC 78200193979
Family Brand Name Ferraz Shawmut
GTiN 00782001939793
Length 8.63 in
Type North American Power Fuses
Diameter 2 in
Terminal Type Blade
Applications Motors Motor Controllers Transformers Mains Feeders
Mounting Type Bolted
Weight 2 lb
Pkg Qty 1
Class L
Insulation Material GMG
TC Connection Blade
Amperage 450 Amp
Interrupt Rating 200 kA
Terminal Material Silver-Plated Copper
Rated Voltage AC 600 V
Rated Voltage DC 500 V
Fuse Class Class L
Voltage null
