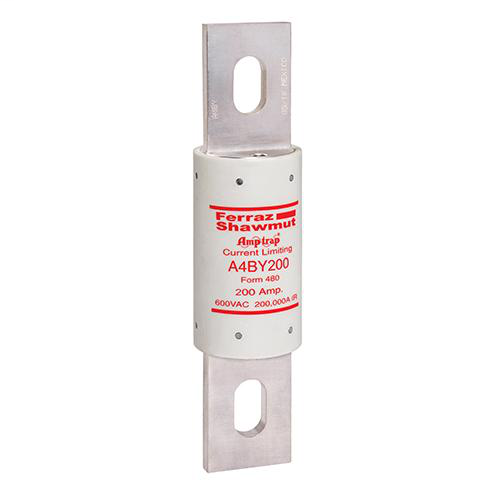

FERRAZ A4BY200 600V 200A L TD FUSE
Product image thumbnail 0
Product image thumbnail 1
$650.15/ea
Usually ships within 8 to 12 Days
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Mersen
Mfg Catalog # A4BY200
North Coast Part # 211643

Features

  • Unique dimensions prevent replacement by other fuse classes
  • Blade-stamped catalog numbers for permanent identification
  • Glass melamine body and plated terminals provide superior reliability in harsh environments

Applications

  • Mains
  • Feeders
  • Circuit Breakers
  • Load centers
  • Panelboards
  • Switchboards
  • Metering Centers

Approvals & Standards

  • Mersen Self-Certification, UL Listed to Standard 248-10, File E2137
  • CSA Certified to Standard C22.2, No. 248.10 IEC 269-2-1
  • DC Tested to UL 248 limits (Mersen Self-Certified)

Specifications

  • Rated voltage AC UL: 600 V
  • Rated voltage DC UL: 300 V
  • Ampere Rating: 200 A
  • Fuse Class: Class L
  • Speed/Characteristic: Time Delay
  • Mounting: Bolted
  • AC Max I.R./Breaking Capacity: I1: 200 kA
  • Connection/Terminal Material: Silver-Plated Copper
  • Connection/Terminal Type: Blade
  • Body/Insulating Material: GMG

Product Dimensions

  • Product Weight: 2.75 lb
  • Product Diameter: 2 in
  • Product Length: 8.63 in

Packaging Dimensions

  • Sell Pack Quantity: 1 Each
  • Sell Pack Weight: 2.89 lb
  • Sell Pack Width: 2.12 in
  • Sell Pack Length: 2.12 in
  • Sell Pack Height: 8.81 in

Overview

UPC 78200193900
Family Brand Name Ferraz Shawmut
GTiN 00782001939007
Length 8.63 in
Type North American Power Fuses
Diameter 2 in
Terminal Type Blade
Applications Mains Feeders Circuit Breakers Load centers Panelboards Switchboards Metering Centers
Mounting Type Bolted
Weight 2.75 lb
Pkg Qty 1
Class L
Insulation Material GMG
TC Connection Blade
Amperage 200 Amp
Interrupt Rating 200 kA
Terminal Material Silver-Plated Copper
Rated Voltage AC 600 V
Rated Voltage DC 300 V
Fuse Class Class L
Voltage 600 VAC
