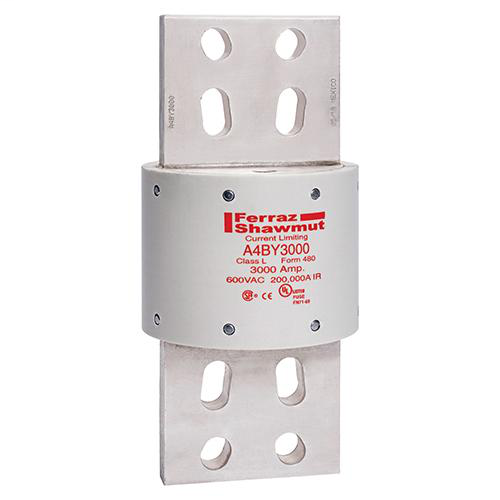

Ferraz Shawmut A4BY3000 3000 Amp 600 Volt Class L Time Delay Fuse
$1,421.65/ea
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Mersen
Mfg Catalog # A4BY3000
North Coast Part # 153437

Features

  • Unique dimensions prevent replacement by other fuse classes
  • Blade-stamped catalog numbers for permanent identification
  • Glass melamine body and plated terminals provide superior reliability in harsh environments

Applications

  • Mains
  • Feeders
  • Circuit Breakers
  • Load centers
  • Panelboards
  • Switchboards
  • Metering Centers

Specifications

  • Sell Pack Height: 5.62 in
  • Product Weight: 19.3 lb
  • Product Diameter: 5 in
  • Product Length: 10.75 in
  • Mounting: Bolted
  • Ampere Rating: 3000 A
  • AC Max I.R./Breaking Capacity: I1: 200 kA
  • ROHS Compliant: Yes
  • Sell Pack Weight: 20.27 lb
  • Sell Pack Width: 5.25 in
  • Sell Pack Length: 11.75 in
  • Body/Insulating Material: GMG
  • Connection/Terminal Type: Blade
  • Sell Pack Quantity: 1 Each
  • Speed/Characteristic: Time Delay
  • Fuse Class: Class L
  • Connection/Terminal Material: Silver-Plated Copper
  • Rated voltage AC UL: 600 V
  • Rated voltage DC UL: 300 V

Approvals & Standards

  • Mersen Self-Certification, UL Listed to Standard 248-10, File E2137
  • CSA Certified to Standard C22.2, No. 248.10 IEC 269-2-1
  • DC Tested to UL 248 limits (Mersen Self-Certified)
  • Approvals & Standards

Categories

Overview

UPC 78200193926
Family Brand Name Ferraz Shawmut
GTiN 00782001939267
Length 10.75 in
Type Time Delay
Diameter 5 in
Terminal Type Blade
Applications Mains Feeders Circuit Breakers Load Centers Panelboards Switchboards Metering Centers
Mounting Type Bolt-On
Weight 19.3 lb
Pkg Qty 1
Class L
Insulation Material GMG
TC Connection Blade
Amperage 3000 Amp
Interrupt Rating 200 kA
Terminal Material Silver-Plated Copper
Rated Voltage AC 600 V
Rated Voltage DC 300 V
Fuse Class Class L
Voltage null
