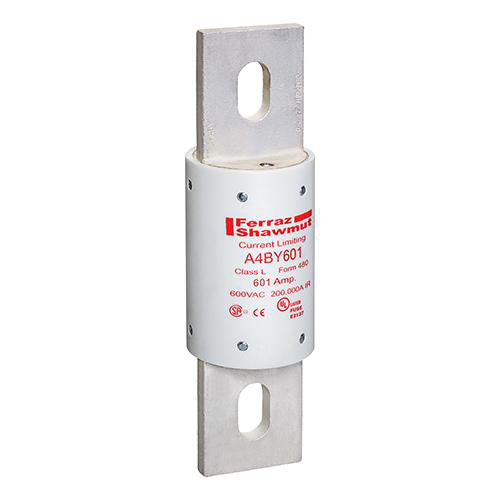

Ferraz Shawmut A4BY601 601 Amp 600 Volt Class L Time Delay Fuse
Product image thumbnail 0
Product image thumbnail 1
Product image thumbnail 2
$687.18/ea
Usually ships within 8 to 12 Days
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Mersen
Mfg Catalog # A4BY601
North Coast Part # 215119

Features

  • Unique dimensions prevent replacement by other fuse classes
  • Blade-stamped catalog numbers for permanent identification
  • Glass melamine body and plated terminals provide superior reliability in harsh environments

Applications

  • Mains
  • Feeders
  • Circuit Breakers
  • Load centers
  • Panelboards
  • Switchboards
  • Metering Centers

Approvals & Standards

  • Mersen Self-Certification, UL Listed to Standard 248-10, File E2137
  • CSA Certified to Standard C22.2, No. 248.10 IEC 269-2-1
  • DC Tested to UL 248 limits (Mersen Self-Certified)

Specifications

  • Rated voltage AC UL: 600 V
  • Rated voltage DC UL: 300 V
  • Ampere Rating: 601 A
  • ROHS Compliant: Yes
  • Fuse Class: Class L
  • Speed/Characteristic: Time Delay
  • Mounting: Bolted
  • AC Max I.R./Breaking Capacity: I1: 200 kA
  • Connection/Terminal Material: Silver-Plated Copper
  • Connection/Terminal Type: Blade
  • Body/Insulating Material: GMG

Product Dimensions

  • Product Weight: 3.95 lb
  • Product Diameter: 2 in
  • Product Length: 8.63 in

Packaging Dimensions

  • Sell Pack Quantity: 1 Each
  • Sell Pack Weight: 4.15 lb
  • Sell Pack Width: 2.5 in
  • Sell Pack Length: 8.75 in
  • Sell Pack Height: 2.38 in

Categories

Overview

UPC 78200193907
Family Brand Name Ferraz Shawmut
Item Long Description Amp-Trap A4BY fuses have been the industry's favorite when it comes to protecting service entrance equipment, feeder circuits, and circuit breakers. The A4BY is a 100percent rated device and may be applied at continuous currents up to its ampere rating. A 4-second minimum time delay at 500percent rating allows the A4BY to pass normal current surges and to coordinate with ground fault relays.
GTiN 00782001939076
Length 8.63 in
Type Time Delay
Diameter 2 in
Terminal Type Blade
Applications Mains Feeders Circuit Breakers Load Centers Panelboards Switchboards Metering Centers
Mounting Type Bolt-On
Weight 3.95 lb
Pkg Qty 1
Class L
Insulation Material GMG
TC Connection Blade
Amperage 601 Amp
Interrupt Rating 200 kA
Terminal Material Silver-Plated Copper
Rated Voltage AC 600 V
Rated Voltage DC 300 V
Fuse Class Class L
Voltage 600 VAC
