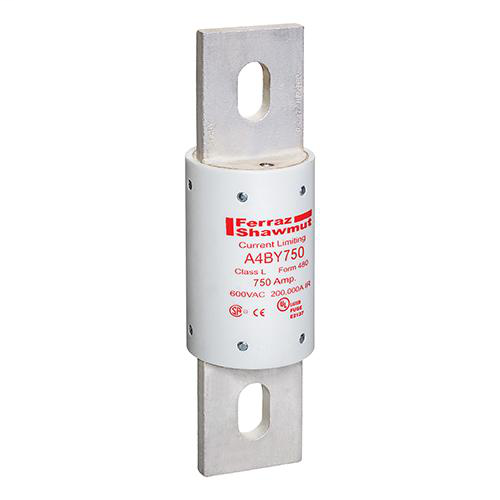

FERRAZ A4BY750 600V 750A L TD FUSE
Product image thumbnail 0
Product image thumbnail 1
Product image thumbnail 2
$853.06/ea
Usually ships within 8 to 12 Days
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Mersen
Mfg Catalog # A4BY750
North Coast Part # 216359

Features

  • Unique dimensions prevent replacement by other fuse classes
  • Blade-stamped catalog numbers for permanent identification
  • Glass melamine body and plated terminals provide superior reliability in harsh environments

Applications

  • Mains
  • Feeders
  • Circuit Breakers
  • Load centers
  • Panelboards
  • Switchboards
  • Metering Centers

Approvals & Standards

  • Mersen Self-Certification, UL Listed to Standard 248-10, File E2137
  • CSA Certified to Standard C22.2, No. 248.10 IEC 269-2-1
  • DC Tested to UL 248 limits (Mersen Self-Certified)

Specifications

  • Rated voltage AC UL: 600 V
  • Rated voltage DC UL: 300 V
  • Ampere Rating: 750 A
  • ROHS Compliant: Yes
  • Fuse Class: Class L
  • Speed/Characteristic: Time Delay
  • Mounting: Bolted
  • AC Max I.R./Breaking Capacity: I1: 200 kA
  • Connection/Terminal Material: Silver-Plated Copper
  • Connection/Terminal Type: Blade
  • Body/Insulating Material: GMG

Product Dimensions

  • Product Weight: 3.95 lb
  • Product Diameter: 2 in
  • Product Length: 8.63 in

Packaging Dimensions

  • Sell Pack Quantity: 1 Each
  • Sell Pack Weight: 4.15 lb
  • Sell Pack Width: 2.5 in
  • Sell Pack Length: 8.75 in
  • Sell Pack Height: 2.38 in

Overview

UPC 78200193910
Family Brand Name Ferraz Shawmut
Item Long Description Amp-Trap A4BY fuses have been the industry's favorite when it comes to protecting service entrance equipment, feeder circuits, and circuit breakers. The A4BY is a 100percent rated device and may be applied at continuous currents up to its ampere rating. A 4-second minimum time delay at 500percent rating allows the A4BY to pass normal current surges and to coordinate with ground fault relays.
GTiN 00782001939106
Length 8.63 in
Type Time-Delay, Low Voltage
Diameter 2 in
Terminal Type Blade
Applications For Mains, Feeders, Circuit Breakers, Load Centers, Panelboards, Switchboards, Metering Centers
Mounting Type Bolt-On
Weight 3.95 lb
Pkg Qty 1
Class L
Insulation Material GMG
Construction Glass Melamine
Contact Material Silver Plated Copper
TC Connection Blade
Amperage 750 Amp
Blade Dimensions 2-1/2 in dia x 8-5/8 in L
Interrupt Rating 200 kA at AC, 100 kA at DC
Terminal Material Silver-Plated Copper
Sub Brand Amp-Trap
Rated Voltage AC 600 V
Rated Voltage DC 300 V
Fuse Class Class L
Voltage 600 VAC, 300 VDC
