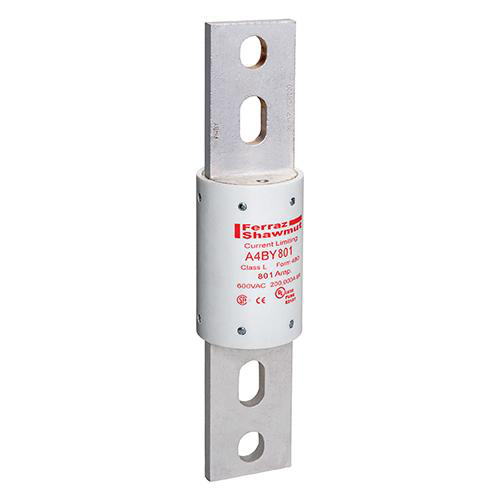

FERRAZ A4BY801 600V 801A L TD FUSE
Product image thumbnail 0
Product image thumbnail 1
Product image thumbnail 2
$853.52/ea
Usually ships within 8 to 12 Days
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Mersen
Mfg Catalog # A4BY801
North Coast Part # 216778

Features

  • Unique dimensions prevent replacement by other fuse classes
  • Blade-stamped catalog numbers for permanent identification
  • Glass melamine body and plated terminals provide superior reliability in harsh environments

Applications

  • Mains
  • Feeders
  • Circuit Breakers
  • Load centers
  • Panelboards
  • Switchboards
  • Metering Centers

Approvals & Standards

  • Mersen Self-Certification, UL Listed to Standard 248-10, File E2137
  • CSA Certified to Standard C22.2, No. 248.10 IEC 269-2-1
  • DC Tested to UL 248 limits (Mersen Self-Certified)

Specifications

  • Rated voltage AC UL: 600 V
  • Rated voltage DC UL: 300 V
  • Ampere Rating: 801 A
  • ROHS Compliant: Yes
  • Fuse Class: Class L
  • Speed/Characteristic: Time Delay
  • Mounting: Bolted
  • AC Max I.R./Breaking Capacity: I1: 200 kA
  • Connection/Terminal Material: Silver-Plated Copper
  • Connection/Terminal Type: Blade
  • Body/Insulating Material: GMG

Product Dimensions

  • Product Weight: 4.5 lb
  • Product Diameter: 2.5 in
  • Product Length: 10.75 in

Packaging Dimensions

  • Sell Pack Quantity: 1 Each
  • Sell Pack Weight: 4.73 lb
  • Sell Pack Width: 3.38 in
  • Sell Pack Length: 11 in
  • Sell Pack Height: 3.25 in

Overview

Family Brand Name Ferraz Shawmut
Product UPC 78200193912
GTiN 00782001939120
Length 10-3/4 Inch
Type North American Power Fuses
Diameter 2.5 in
Terminal Type Blade
Applications Mains Feeders Circuit Breakers Load centers Panelboards Switchboards Metering Centers
Mounting Type Bolted
Weight 4.5 lb
Pkg Qty 1
Class L
Insulation Material GMG
TC Connection Blade
Amperage 801 Amp
Interrupt Rating 200 kA
Terminal Material Silver-Plated Copper
Rated Voltage AC 600 V
Rated Voltage DC 300 V
Fuse Class Class L
Voltage 600 VAC
