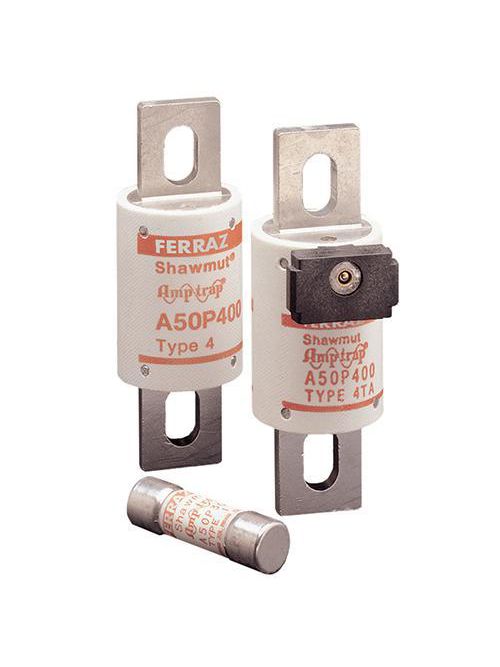

Ferraz Shawmut A50P150-4 31 x 92.2 mm 150 Amp 500 Volt Semiconductor Protection Fuse
Product image thumbnail 0
Product image thumbnail 1
$114.07/ea
Usually ships within 8 to 12 Days
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Mersen
Mfg Catalog # A50P150-4
North Coast Part # 154616

Features

  • Low I2t minimizes damage to protected components on short circuit
  • Controlled arc voltage reduces stress to circuit components during fuse clearing
  • Choice of mounting types helps in equipment design

Applications

  • Protection of DC drives, UPS and other equipment of 500 volts or less

Approvals & Standards

  • UL Recognized Component UL File 60314
  • AC: UL Guide No. JFHR2 (10-800A)
  • DC: UL Guide No.JFHR2 (35-800A)

Specifications

  • Rated voltage AC UL: 500 V
  • Rated voltage DC UL: 450 V
  • Ampere Rating: 150 A
  • ROHS Compliant: Yes
  • Speed/Characteristic: High Speed
  • Mounting: Bolted
  • AC Max I.R./Breaking Capacity: I1: 50 kA
  • Connection/Terminal Material: Tin-Plated Brass
  • Connection/Terminal Type: Blade
  • Body/Insulating Material: GMG

Product Dimensions

  • Product Weight: 0.45 lb
  • Product Diameter: 1.22 in
  • Product Length: 3.63 in

Packaging Dimensions

  • Sell Pack Quantity: 5 Each
  • Sell Pack Weight: 2.36 lb
  • Sell Pack Width: 5.75 in
  • Sell Pack Length: 8 in
  • Sell Pack Height: 1.5 in

Overview

UPC 78200194610
Family Brand Name Ferraz Shawmut
GTiN 00782001946104
Length 3.63 in
Type High Speed, Form 101, Fast Acting
Diameter 1.22 in
Terminal Type Blade
Applications For Protection of DC drives, UPS and Other Equipment of 500 V or Less
Mounting Type Bolt-In
Weight 0.45 lb
Pkg Qty 5
Insulation Material GMG
Construction GMG
Contact Material Tin-Plated Brass
TC Connection Blade
Amperage 150 Amp
Response Time 10 Millisecond
Blade Dimensions 1.22 in dia x 3.63 in L
Interrupt Rating 100 kA
Terminal Material Tin-Plated Brass
Sub Brand Amp-Trap
Rated Voltage AC 500 V
Rated Voltage DC 450 V
Voltage 500 VAC
