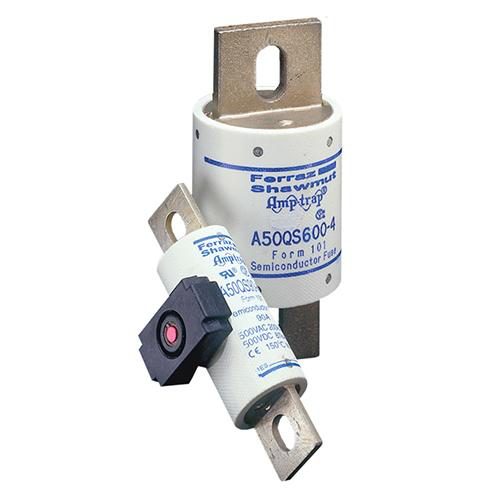

FERRAZ A50QS275-4IL 500V 275A SEMIC

Features

• Lowest I2t for greatest protection of semiconductor circuits
• Low watts loss for cooler operation
• Superior cycling ability gives an equipment design advantage
• State-of-the-art protection for 500V equipment
• Ultra compact sizes allow down-sizing of existing equipment

Applications

• Protection of 500V or less motor drives, UPS, inverters, etc.

Approvals & Standards

• UL recognized component UL File 60314
• AC: UL guide no. JFHR2
• DC Tested to UL standard 198L parameters (70-1200A)
• CSA Certified LR12636

Specifications

• Rated voltage AC UL: 500 V
• Rated voltage DC UL: 500 V
• Ampere Rating: 275 A
• ROHS Compliant: Yes
• Speed/Characteristic: High Speed
• Mounting: Bolted
• AC Max I.R./Breaking Capacity: I1: 63 kA
• Indication System: Yes
• Indication System Type: IL Indicator
• Connection/Terminal Material: Tin-Plated Copper
• Connection/Terminal Type: Blade
• Body/Insulating Material: GMG

Product Dimensions

• Product Weight: 0.72 lb
• Product Diameter: 1.5 in
• Product Length: 4.34 in

Packaging Dimensions

• Sell Pack Quantity: 4 Each
• Sell Pack Weight: 3.02 lb
• Sell Pack Width: 5.19 in
• Sell Pack Length: 13.5 in
• Sell Pack Height: 3.31 in
