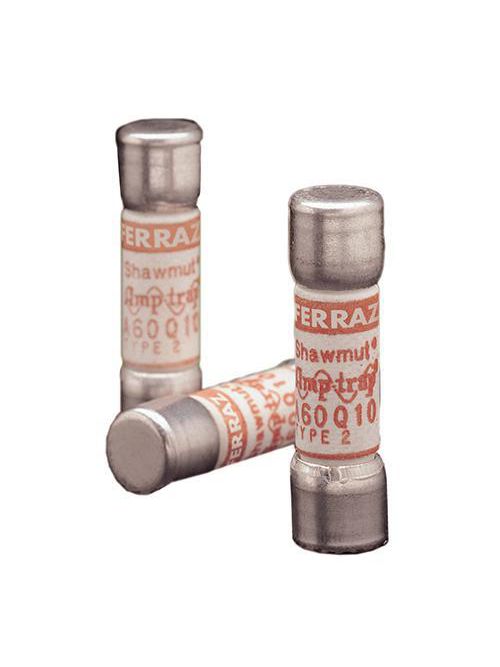

FERRAZ A60Q6-2 600V 6A SEMICOND FUS
Product image thumbnail 0
Product image thumbnail 1
$29.03/ea
Usually ships within 8 to 12 Days
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Mersen
Mfg Catalog # A60Q6-2
North Coast Part # 340175

Features

  • Lowest I2t of any fuse this size for greater protection
  • Excellent cycling ability gives advantage in equipment design
  • 600V AC / DC rated

Applications

  • Protection of small inverters and drives, and equipment requiring the highest degree of protection

Approvals & Standards

  • UL Recognized component
  • AC: UL guide JFHR2 File E60314
  • DC: UL file E60314

Specifications

  • Rated voltage AC UL: 600 V
  • Rated voltage DC UL: 600 V
  • Frequency: 50/60 Hz
  • Ampere Rating: 6 A
  • ROHS Compliant: Yes
  • Speed/Characteristic: High Speed
  • Mounting: Clip
  • AC Max I.R./Breaking Capacity: I1: 63 kA
  • Connection/Terminal Material: Tin-Plated Copper
  • Connection/Terminal Type: Ferrule
  • Body/Insulating Material: GMG

Product Dimensions

  • Product Weight: 0.02 lb
  • Product Diameter: 0.41 in
  • Product Length: 1.5 in

Packaging Dimensions

  • Sell Pack Quantity: 100 Each
  • Sell Pack Weight: 2.1 lb
  • Sell Pack Width: 5.12 in
  • Sell Pack Length: 8.13 in
  • Sell Pack Height: 1.62 in

Overview

UPC 78200194664
Family Brand Name Ferraz Shawmut
GTiN 00782001946647
Length 1.5 in
Type North American Round Style
Diameter 0.41 in
Terminal Type Ferrule
Applications Protection of small inverters and drives, and equipment requiring the highest degree of protection
Mounting Type Clip
Weight 0.02 lb
Pkg Qty 100
Insulation Material GMG
TC Connection Ferrule
Amperage 6 Amp
Terminal Material Tin-Plated Copper
Rated Voltage AC 600 V
Rated Voltage DC 600 V
Voltage 600 VAC
Frequency 50 Hz
