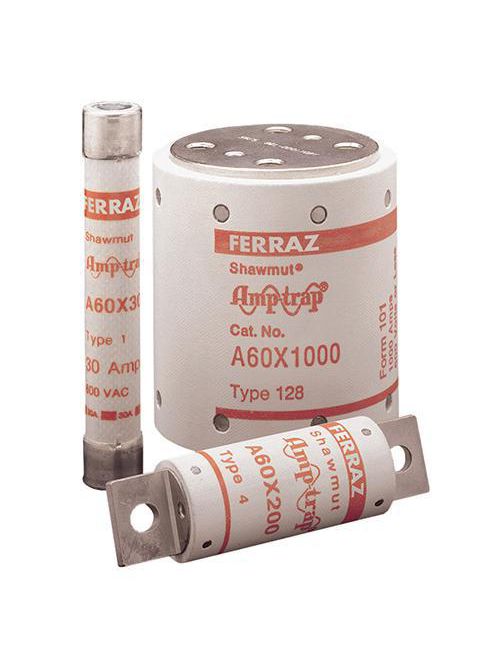

FERRAZ A60X150-4TA 94679-FUSE,FORM

Features

• Low I2t minimizes damage to protected components on short circuit
• Controlled arc voltage reduces stress to circuit components during fuse clearing
• Choice of mounting types helps in equipment design

Applications

• Protection of heavy traction and electrochemical as well as rectifiers and other heavy-duty equipment

Approvals & Standards

• UL recognized component UL file E60314
• AC: UL guide no. JFHR2 (35-800A)

Specifications

• Rated voltage AC UL: 600 V
• Ampere Rating: 150 A
• Speed/Characteristic: High Speed
• Mounting: Bolted
• AC Max I.R./Breaking Capacity: I1: 200 kA
• Indication System: Yes
• Indication System Type: TA Indicator
• Connection/Terminal Material: Tin-Plated Brass
• Connection/Terminal Type: Bolted
• Body/Insulating Material: GMG

Product Dimensions

• Product Weight: 0.65 lb
• Product Diameter: 1.63 in
• Product Length: 4.41 in

Packaging Dimensions

• Sell Pack Quantity: 5 Each
• Sell Pack Weight: 3.41 lb
• Sell Pack Width: 5 in
• Sell Pack Length: 7.5 in
• Sell Pack Height: 2.75 in
