FERRAZ A60X350-4K 94816-FUSE,FORM 1
Product image thumbnail 0
Product image thumbnail 1
Product image thumbnail 2
$430.36/ea
Usually ships within 8 to 12 Days
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Mersen
Mfg Catalog # A60X350-4K
North Coast Part # 330797

Features

  • Low I2t minimizes damage to protected components on short circuit
  • Controlled arc voltage reduces stress to circuit components during fuse clearing
  • Choice of mounting types helps in equipment design

Certifications

  • UL recognized component UL file E60314
  • AC: UL guide no. JFHR2 (35-800A)

Specifications

  • Max Operating Temp: 80 °C
  • Max Storage Temp: 80 °C
  • Min Storage Temp: -25 °C
  • Ampere Rating: 350 A
  • Rated Voltage Ac Ul: 600 V
  • Ac Max I R Breaking Capacity I1: 200 kA
  • Product Diameter: 1.5 in
  • Country Of Origin: MX
  • Product Line: Amp-Trap® A60X 600VAC
  • Product Brand: Amp-Trap®
  • Body Insulating Material: GMG
  • Connection Terminal Material: Tin-Plated Brass
  • Connection Terminal Type: Bolted
  • Speed Characteristic: High Speed
  • Mounting: Bolted

Overview

UPC 78200194816
Family Brand Name Mersen

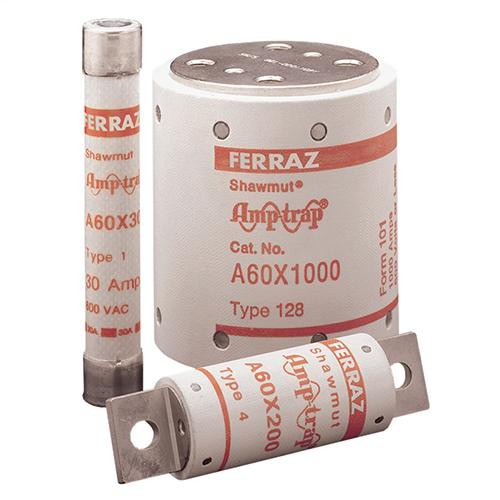

Item Long Description A60X Amp-Trap Form 101 high speed fuses are popular for the protection of higher voltage heavy rectifiers such as traction rectifiers. They can carry long sustained overloads common with heavy duty apparatus. 700A through 2000A sizes are of compact, hockey-puck design, able to provide high power protection in a small space.
GTiN 00782001948160
Length 6.25 in
Diameter 1.5 in
Terminal Type Bolted
Applications Protection of heavy traction and electro-chemical as well as rectifiers and other heavy-duty equipment
Mounting Type Bolted
Weight 0.95 lb
Pkg Qty 6
Insulation Material GMG
TC Connection Bolted
Amperage 350 Amp
Terminal Material Tin-Plated Brass
Sub Brand Ferraz Shawmut
Rated Voltage AC 600 V
Voltage 600 Volt
Country of Origin Mexico
Max Operating Temperature 80 C
