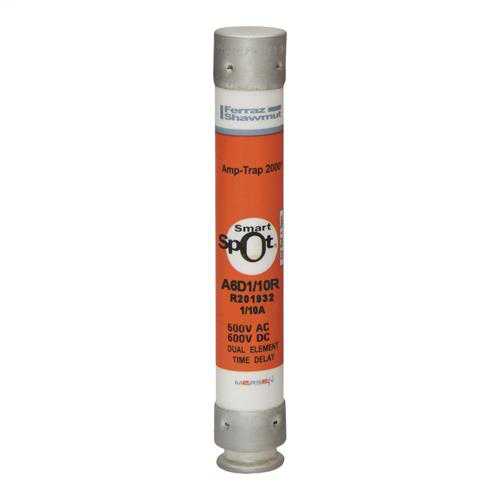

FERRAZ A6D1/10R 600V 1/10A RK1 TD F
Product image thumbnail 0
Product image thumbnail 1
Usually ships within 8 to 12 Days
Already a Customer? Log in to view your pricing
Manufacturer Mersen
Mfg Catalog # A6D1/10R
North Coast Part # 603228


  • Solid state SmartSpot visual blown fuse indicator
  • Time-delay for motor starting and transformer inrush currents without nuisance opening
  • 600VAC & 600VDC dual rated
  • 300kA interrupting rating - self-certified, UL witnessed tests
  • Extremely current-limiting for low peak let-thru current
  • Recommended for Arc Flash energy reduction
  • Easy 2-to-1 selectivity for prevention of nuisance shut downs and “black outs”
  • Rejection-style design prevents replacement errors (when used with recommended fuse blocks)
  • High-visibility orange label gives instant brand recognition
  • Reduced inventory by taking the place of class RK5, K, and H fuses
  • Metal-embossed date and catalog number for easier traceability and lasting identification
  • Fiberglass body provides dimensional stability in harsh industrial settings


  • Motors
  • Safety switches
  • Transformers
  • Branch circuit protection
  • Disconnects
  • Control panels
  • All general-purpose circuits


  • Sell Pack Height: 1.75 in
  • Product Weight: 0.14 lb
  • Product Diameter: 0.81 in
  • Product Length: 5 in
  • Mounting: Clip
  • Ampere Rating: 0.1 A
  • AC Max I.R./Breaking Capacity: I1: 200 kA
  • Sell Pack Weight: 1.47 lb
  • Sell Pack Width: 4.12 in
  • Sell Pack Length: 5.12 in
  • Body/Insulating Material: PolyTube
  • Connection/Terminal Type: Ferrule
  • Sell Pack Quantity: 10 Each
  • Speed/Characteristic: Time Delay
  • Fuse Class: Class RK1
  • Connection/Terminal Material: Tin-Plated Copper
  • Rated voltage AC UL: 600 V
  • Rated voltage DC UL: 600 V

Approvals & Standards

  • UL listed to standard 248-12 File E2137
  • DC listed to UL standard 248
  • CSA certified to standard C22.2 No. 248.12
  • Approvals & Standards


UPC 78200199152
Family Brand Name Ferraz Shawmut
GTiN 00782001991524
Length 5 in
Type Time-Delay, Current Limiting, Low Voltage
Diameter 0.81 in
Terminal Type Ferrule
Applications For Motors, Safety Switches, Transformers, Disconnects, Control Panels, All General Purpose Circuits
Mounting Type Clip
Weight 0.14 lb
Pkg Qty 10
Class RK-1
Insulation Material PolyTube
Construction Polyester
Contact Material Tin Plated Copper
TC Connection Ferrule
Amperage 0.1 Amp
Blade Dimensions 13/16 in dia x 5 in L
Interrupt Rating 200 kA at AC, 100 kA at DC
Terminal Material Tin-Plated Copper
Sub Brand Amp-Trap 2000
Rated Voltage AC 600 V
Rated Voltage DC 600 V
Fuse Class Class RK1
