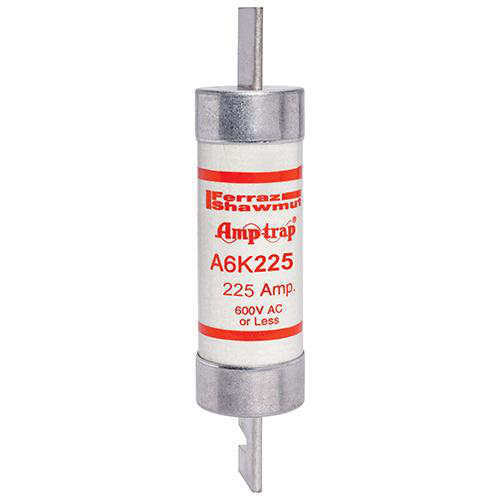

FERRAZ A6K225R 600V 225A RK1 FUSE

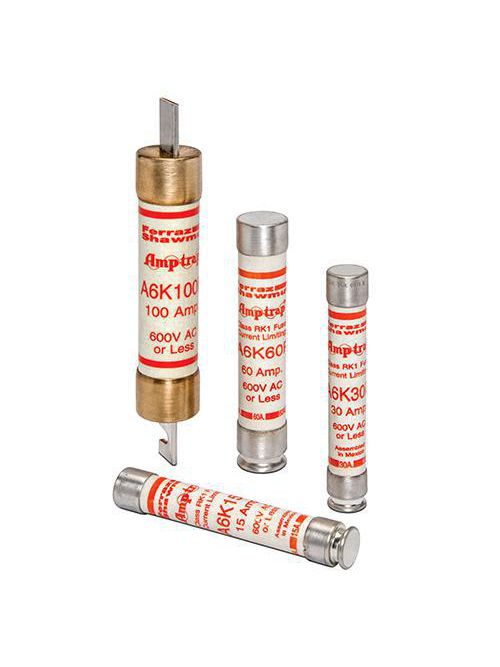

Product image thumbnail 0
Product image thumbnail 1
$1,260.32/ea
Usually ships within 8 to 12 Days
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Mersen
Mfg Catalog # A6K225R
North Coast Part # 151444

Features

  • Rejection style design prevents replacement by other fuse classes
  • Fiberglass body provides dimensional stability in harsh industrial environments
  • Easy-to-read imprint label for quick recognition and replacement
  • High degree of current limitation for low peak let-thru current

Applications

  • Load centers
  • Panelboards
  • Switchboards
  • Bus duct
  • Feeder circuits
  • Non-inductive loads
  • Lighting circuits

Approvals & Standards

  • UL listed to standard 248-12 File E2137
  • CSA certified to standard C22.2 No. 248.12
  • Self-certified for DC per UL248

Specifications

  • Rated voltage AC UL: 600 V
  • Rated voltage DC UL: 300 V
  • Ampere Rating: 225 A
  • ROHS Compliant: Yes
  • Fuse Class: Class RK1
  • Speed/Characteristic: Fast-Acting
  • Mounting: Clip
  • AC Max I.R./Breaking Capacity: I1: 200 kA
  • Connection/Terminal Material: Tin-Plated Copper
  • Connection/Terminal Type: Blade
  • Body/Insulating Material: PolyTube

Product Dimensions

  • Product Weight: 4.05 lb
  • Product Diameter: 2.56 in
  • Product Length: 11.63 in

Packaging Dimensions

  • Sell Pack Quantity: 1 Each
  • Sell Pack Weight: 4.25 lb
  • Sell Pack Width: 2.62 in
  • Sell Pack Length: 2.62 in
  • Sell Pack Height: 11.75 in

Overview

UPC 78200191583
Family Brand Name Ferraz Shawmut
GTiN 00782001915834
Length 11.63 in
Type Fast Acting
Diameter 2.56 in
Terminal Type Blade
Applications For Load Centers, Panelboards, Switchboards, Bus Duct, Feeder Circuits, Non-Inductive Loads, Lighting Circuits
Mounting Type Clip
Weight 4.05 lb
Pkg Qty 1
Class RK-1
Insulation Material PolyTube
Construction Fiberglass
Contact Material Tin Plated Copper
TC Connection Blade
Amperage 225 Amp
Blade Dimensions 2-9/16 in dia x 11-5/8 in L
Interrupt Rating 200 kA at AC, 20 kA at DC
Terminal Material Tin-Plated Copper
Sub Brand Amp-Trap
Rated Voltage AC 600 V
Rated Voltage DC 300 V
Fuse Class Class RK1
Voltage 600 VAC, 300 VDC
