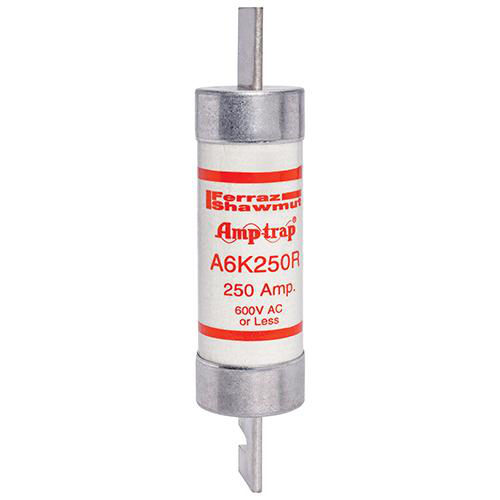

Ferraz Shawmut A6K250R 250 Amp 600 Volt Class RK1 Fast Acting Fuse
Product image thumbnail 0
Product image thumbnail 1
Product image thumbnail 2
$1,211.84/ea
Usually ships within 8 to 12 Days
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Mersen
Mfg Catalog # A6K250R
North Coast Part # 153648

Features

  • Rejection style design prevents replacement by other fuse classes
  • Fiberglass body provides dimensional stability in harsh industrial environments
  • Easy-to-read imprint label for quick recognition and replacement
  • High degree of current limitation for low peak let-thru current

Applications

  • Load centers
  • Panelboards
  • Switchboards
  • Bus duct
  • Feeder circuits
  • Non-inductive loads
  • Lighting circuits

Approvals & Standards

  • UL listed to standard 248-12 File E2137
  • CSA certified to standard C22.2 No. 248.12
  • Self-certified for DC per UL248

Specifications

  • Rated voltage AC UL: 600 V
  • Rated voltage DC UL: 300 V
  • Ampere Rating: 250 A
  • ROHS Compliant: Yes
  • Fuse Class: Class RK1
  • Speed/Characteristic: Fast-Acting
  • Mounting: Clip
  • AC Max I.R./Breaking Capacity: I1: 200 kA
  • Connection/Terminal Material: Tin-Plated Copper
  • Connection/Terminal Type: Blade
  • Body/Insulating Material: PolyTube

Product Dimensions

  • Product Weight: 4.05 lb
  • Product Diameter: 2.56 in
  • Product Length: 11.63 in

Packaging Dimensions

  • Sell Pack Quantity: 1 Each
  • Sell Pack Weight: 4.25 lb
  • Sell Pack Width: 2.62 in
  • Sell Pack Length: 2.62 in
  • Sell Pack Height: 11.75 in

Categories

Overview

UPC 78200191584
Family Brand Name Ferraz Shawmut
Item Long Description Current-limiting Amp-Trap A6K-R fuses provide excellent protection where high available short-circuit currents exist. These fast-acting fuses are particularly good for branch/feeder circuits and back-up protection.
GTiN 00782001915841
Length 11.63 in
Type North American Power Fuses
Diameter 2.56 in
Terminal Type Blade
Applications For Load Centers, Panelboards, Switchboards, Bus Duct, Feeder Circuits, Non-Inductive Loads, Lighting Circuits
Mounting Type Clip
Weight 4.05 lb
Pkg Qty 1
Class RK-1
Insulation Material PolyTube
Construction Fiberglass
TC Connection Blade
Amperage 250 Amp
Interrupt Rating 200 kA
Terminal Material Tin-Plated Copper
Rated Voltage AC 600 V
Rated Voltage DC 300 V
Fuse Class Class RK1
Voltage 600 VAC
