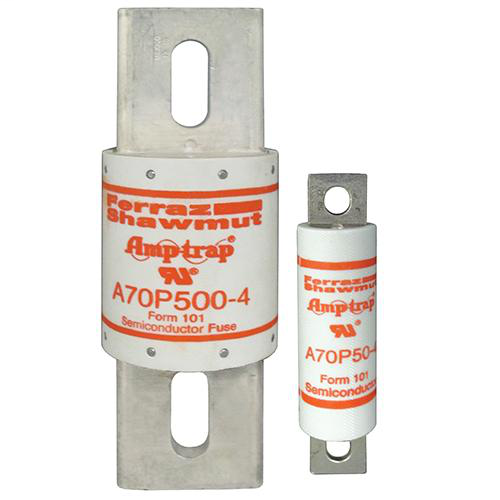

Ferraz Shawmut A70P350-4 50.8 x 129 mm 350 Amp 700 Volt Semiconductor Protection Fuse

Features

• Low I2t minimizes damage to protected components on short circuit
• Controlled arc voltage reduces stress to circuit components during fuse clearing
• Choice of mounting types helps in equipment design

Applications

• Protection of 700V or less DC drives, UPS, inverters, reduced voltage starters, etc.

Approvals & Standards

• UL recognized component UL File E60314
• AC: guide no. JFHR2 (10-1000A)
• DC: tested to UL standard 198L parameters (10-800A)

Specifications

• Rated voltage AC UL: 700 V
• Rated voltage DC UL: 650 V
• Ampere Rating: 350 A
• ROHS Compliant: Yes
• Speed/Characteristic: High Speed
• Mounting: Bolted
• AC Max I.R./Breaking Capacity: I1: 50 kA
• Connection/Terminal Material: Tin-Plated Copper
• Connection/Terminal Type: Bolted
• Body/Insulating Material: GMG

Product Dimensions

• Product Weight: 0.95 lb
• Product Diameter: 2 in
• Product Length: 5.09 in

Packaging Dimensions

• Sell Pack Quantity: 5 Each
• Sell Pack Weight: 4.99 lb
• Sell Pack Width: 5.19 in
• Sell Pack Length: 10.19 in
• Sell Pack Height: 2.12 in
