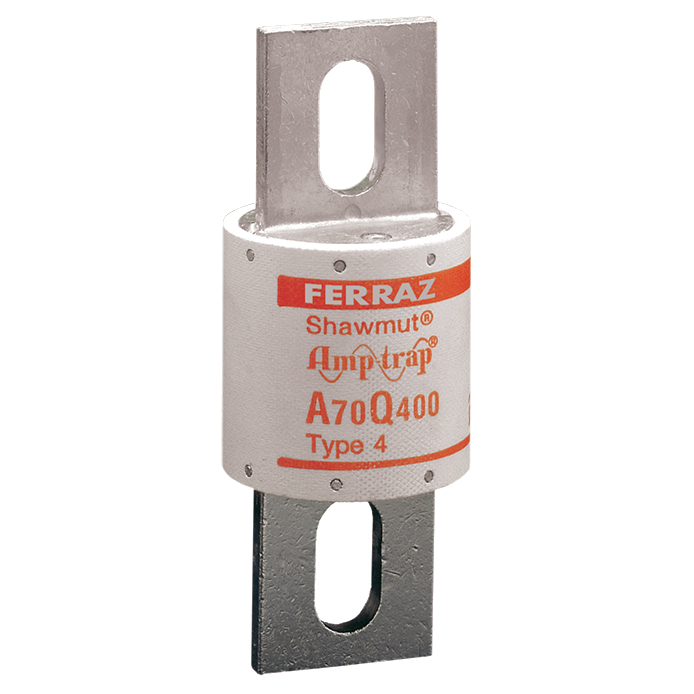

FERRAZ A70Q250-4IL 700V 250A SEMICO
Product image thumbnail 0
Product image thumbnail 1
$474.19/ea
Usually ships within 8 to 12 Days
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Mersen
Mfg Catalog # A70Q250-4IL
North Coast Part # 603243

Features

  • Lowest I2t of any fuse in this voltage rating for best overall protection
  • 700V AC, 650V DC rating allows protection of greater variety of circuits
  • Solid fill technology for extra reliability in performance

Certifications

  • UL recognized component UL File E60314
  • AC: guide no. JFHR2
  • DC: tested to UL standard 198L parameters (35-600A)

Specifications

  • Max Operating Temp: 80 °C
  • Max Storage Temp: 80 °C
  • Min Storage Temp: -25 °C
  • Ampere Rating: 250 A
  • Rated Voltage Ac Ul: 700 V
  • Rated Voltage Dc Ul: 650 V
  • Ac Max I R Breaking Capacity I1: 50 kA
  • Product Diameter: 2 in
  • Country Of Origin: MX
  • Product Line: Amp-Trap® A70Q 700VAC 650VDC
  • Product Brand: Amp-Trap®
  • Body Insulating Material: GMG
  • Connection Terminal Material: Tin-Plated Copper
  • Connection Terminal Type: Bolted
  • Speed Characteristic: High Speed
  • Mounting: Bolted

Categories

Overview

UPC 78200132905
Family Brand Name Ferzshaw
Item Long Description A70Q Amp-Trap high speed fuses were developed for inverter applications requiring extremely low I2t. A70Q fuses provide the most responsive protection for applications not required to sustain heavy overloads. Typically used for replacement purposes.
GTiN 00782001329051
Length 5.09 in
Type North American Round Style
Diameter 2 in
Terminal Type Bolted
Applications Protection of inverters and other equipment requiring the best AC or DC protection in this voltage range
Mounting Type Bolted
Weight 1.05 lb
Pkg Qty 4
Insulation Material GMG
TC Connection Bolted
Amperage 250 Amp
Indicator IL Indicator
Terminal Material Tin-Plated Copper
Rated Voltage AC 700 V
Rated Voltage DC 650 V
Voltage 700 Volt
Country of Origin Mexico
Max Operating Temperature 80 C
