FERRAZ A70QS8-14F 8A 700V FF SEMICO
Product image thumbnail 0
Product image thumbnail 1
$32.63/ea
Usually ships within 8 to 12 Days
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Mersen
Mfg Catalog # A70QS8-14F
North Coast Part # 603302

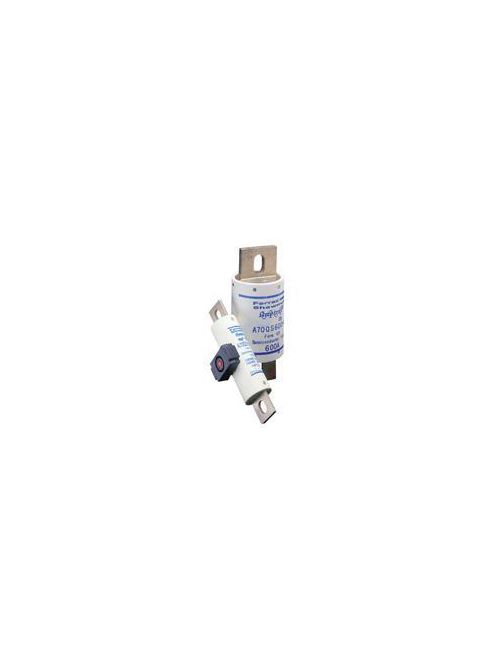

These Premium Amp-trap French Cylindrical Semiconductor Fuses are an extension of the popular A70QS product line. They are solid-fill 14mm and 22mm fuses IEC rated 690VAC, 200kA Interrupting and 700VDC, 100kA interrupting at 10ms time constant. In addition, these fuses have an 890 VDC rating for capacitor discharge applications up to 2.5ms time constant. All ampere ratings are available with a striker. Applications include small inverter drives and UPS systems, with superior I²t for improved protection and performance. 690 Volts 8 amps.

Overview

UPC 78200135881
Family Brand Name Ferraz Shawmut
Item Long Description These Premium Amp-trap French Cylindrical Semiconductor Fuses are an extension of the popular A70QS product line. They are solid-fill 14mm and 22mm fuses IEC rated 690VAC, 200kA Interrupting and 700VDC, 100kA interrupting at 10ms time constant. In addition, these fuses have an 890 VDC rating for capacitor discharge applications up to 2.5ms time constant. All ampere ratings are available with a striker. Applications include small inverter drives and UPS systems, with superior I²t for improved protection and performance. 690 Volts 8 amps.
GTiN 00782001358815
Type North American Round Style
Applications Small inverters, UPS systems, Solid State Relays, motor drives and similar 700V or less equipment
TC Connection Ferrule
Voltage 690 VAC
