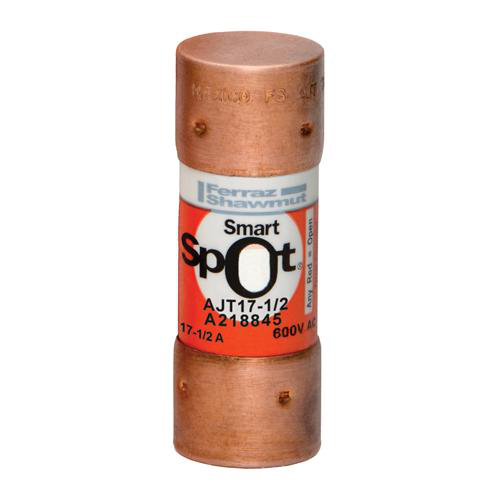

Ferraz Shawmut AJT17-1/2 17-1/2 Amp 600 Volt Class J Time Delay Fuse

$26.27/ea

Usually ships within 8 to 12 Days

Adding...

Already a Customer? Log in to view your pricing

Features

Non-indicating or solid state SmartSpot visual blown fuse indicator
Time-delay for motor starting and transformer inrush
300kA interrupting rating - self-certified, UL witnessed tests
Extremely current-limiting for low peak let-thru current
Most current-limiting UL class fuse
Recommended for Arc Flash energy reduction
Small footprint requires less mounting space and allows smaller, more economical fuse blocks
Easy 2-to-1 selectivity for prevention of nuisance shutdowns
Unique Class J dimensions prevent replacement errors
High-visibility orange label gives instant brand recognition
Metal-embossed date and catalog number for traceability and lasting identification
Fiberglass body provides dimensional stability in harsh industrial settings
High-grade silica filler ensures fast arc quenching
Optional EI indicator/switch mount for AJT70 to 600 open fuse indication

UPC	78200196311
Family Brand Name	Ferraz Shawmut
GTiN	00782001963118
Length	2.25 in
Type	Time-Delay
Diameter	0.81 in
Terminal Type	Ferrule
Applications	For Motor Circuits, Mains, Feeders, Branch Circuits, Lighting, Heaters, Transformers, Control Panels, Circuit Breaker Back-up, Bus Duct, Load Centers
Mounting Type	Clip
Weight	0.2 lb
Frequency	50 Hz
Pkg Qty	10
Class	J
Insulation Material	GMG
Construction	Fiberglass
TC Connection	Ferrule
Amperage	17.5 Amp
Interrupt Rating	200 kA
Indicator	SmartSpot
Terminal Material	Tin-Plated Copper
Sub Brand	Amp-Trap 2000
Rated Voltage AC	600 V
Rated Voltage DC	500 V
Fuse Class	Class J
Voltage	null
