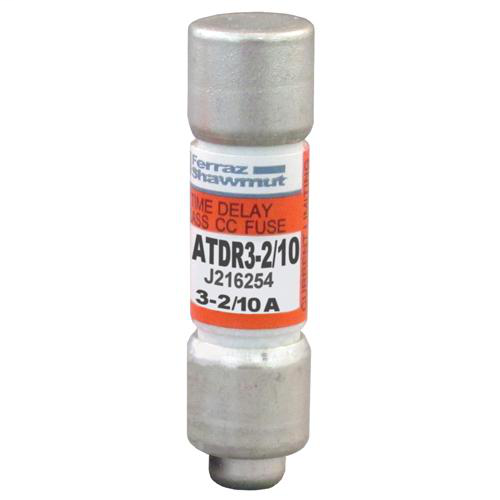

FERRAZ ATDR3-2/10 600V 3-2/10A CC T
$28.08/ea
Usually ships within 8 to 12 Days
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Mersen
Mfg Catalog # ATDR3-2/10
North Coast Part # 157152

Features

  • Time-delay for motor starting inrush currents without nuisance opening
  • Highly current-limiting for low peak let-thru current
  • Improved cycling ability for frequent motor starts/stops without nuisance fuse opening
  • Rejection-style design prevents replacement errors (when used with recommended fuse blocks)
  • High-visibility orange label ensures instant brand recognition, simplifies replacement
  • Metal-embossed date and catalog number for traceability and lasting identification
  • Fiberglass body provides dimensional stability in harsh industrial settings
  • High-grade silica filler ensures fast arc quenching and optimum current-limitation

Applications

  • Small motors
  • Contactors
  • Lighting, heating & general loads
  • Branch circuit protection

Specifications

  • Sell Pack Height: 2.12 in
  • Product Weight: 0.02 lb
  • Product Diameter: 0.41 in
  • Product Length: 1.5 in
  • Mounting: Clip
  • Ampere Rating: 3.2 A
  • AC Max I.R./Breaking Capacity: I1: 200 kA
  • Sell Pack Weight: 0.21 lb
  • Sell Pack Width: 0.88 in
  • Sell Pack Length: 1.62 in
  • Body/Insulating Material: GMG
  • Connection/Terminal Type: Ferrule
  • Sell Pack Quantity: 10 Each
  • Speed/Characteristic: Time Delay
  • Fuse Class: Class CC
  • Connection/Terminal Material: Tin-Plated Copper
  • Rated voltage AC UL: 600 V
  • Rated voltage DC UL: 300 V

Approvals & Standards

  • UL listed to standard 248-4 File E2137
  • CSA certified to standard C22.2 No. 248.4
  • DC listed to UL standard 248
  • Approvals & Standards

Categories

Overview

UPC 78200190854
Family Brand Name Ferraz Shawmut
GTiN 00782001908546
Length 1.5 in
Type Time Delay, ATDR
Diameter 0.41 in
Terminal Type Ferrule
Applications Small Motors Contactors Lighting Heaters General Loads
Mounting Type Clip
Weight 0.02 lb
Pkg Qty 10
Class CC
Insulation Material GMG
TC Connection Ferrule
Amperage 3.2 Amp
Blade Dimensions 10 mm dia x 38 mm L
Interrupt Rating 200 kA
Terminal Material Tin-Plated Copper
Sub Brand Amp-Trap 2000, SmartSpot
Rated Voltage AC 600 V
Rated Voltage DC 300 V
Fuse Class Class CC
Voltage null
