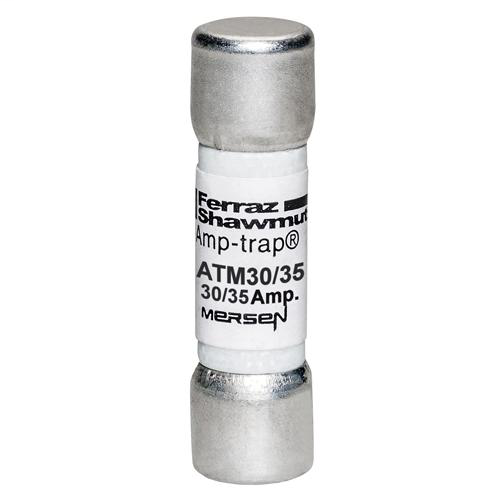

FERRAZ ATM30/35 90059-FUSE,FORM 600
Product image thumbnail 0
Product image thumbnail 1
Product image thumbnail 2
$39.89/ea
Usually ships within 8 to 12 Days
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Mersen
Mfg Catalog # ATM30/35
North Coast Part # 14736

Features

  • For supplemental protection of small motors and transformers
  • Extended ratings for special protection of capacitors and circuits with high inrush currents
  • 600VDC ratings for a wide variety of applications including photovoltaic and solar applications.
  • Can be used with UltraSafe™ fuse holders
  • 1 1/2" x 13/32" (10mm x 38mm) dimensions

Applications

  • Supplemental protection of of circuits up to 600VAC and 600VDC with 100kA I.R.

Approvals & Standards

  • UL listed to standard 248-14 (1/10 to 30A) File E33925
  • DC Listed to UL Standard 248-14 (1/10 to 30A)
  • CSA Certified to Standard C22.2 No. 248.14 (1/10 to 30A)

Specifications

  • Rated voltage AC UL: 600 V
  • Ampere Rating: 30 A
  • ROHS Compliant: Yes
  • Fuse Class: Midget
  • Speed/Characteristic: Fast-Acting
  • Mounting: Clip
  • AC Max I.R./Breaking Capacity: I1: 100 kA
  • Connection/Terminal Material: Tin-Plated Copper
  • Connection/Terminal Type: Ferrule
  • Body/Insulating Material: GMG

Product Dimensions

  • Product Weight: 0.012 lb
  • Product Diameter: 0.41 in
  • Product Length: 1.5 in

Packaging Dimensions

  • Sell Pack Quantity: 10 Each
  • Sell Pack Weight: 0.13 lb
  • Sell Pack Width: 0.88 in
  • Sell Pack Length: 1.62 in
  • Sell Pack Height: 2.12 in

Overview

UPC 78200190059
Family Brand Name Ferraz Shawmut
Item Long Description Amp-Trap midget fast-acting ATM fuses are rated 600 volts AC and DC, with a 100kA interrupting rating. These ratings give the ATM a wide range of applications not covered by other midget fuses. In addition, ratings of 30/35, 30/40 and 30/50 amperes are offered for specific applications such as capacitor protection. These ATM fuses must still be considered 30A fuses because of their dimensions, but are able to withstand much higher inrush currents and tougher duty cycles. (Not for Branch Circuit Protection).
GTiN 00782001900595
Length 1.5 in
Type Supplemental Protection
Diameter 0.41 in
Terminal Type Ferrule
Applications Supplemental Protection of a Wide Variety of Circuits up to 600 VAC and 600 VDC with 100 KA I.R, Small Motors and Transformers
Mounting Type Clip
Weight 0.012 lb
Pkg Qty 10
Class M
Insulation Material GMG
TC Connection Ferrule
Amperage 30 Amp
Interrupt Rating 100 kA
Terminal Material Tin-Plated Copper
Rated Voltage AC 600 V
Fuse Class Class M
Voltage 600 VAC
