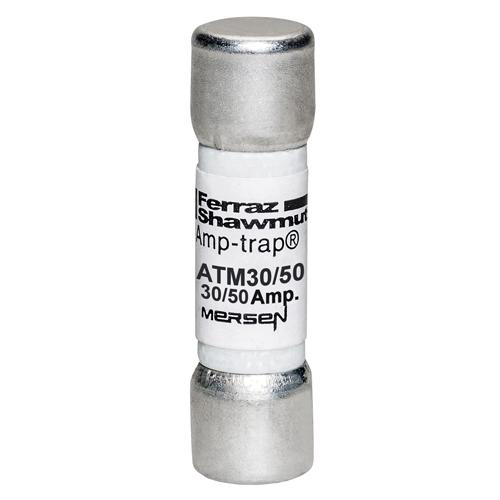

FERRAZ ATM30/50 90098-FUSE,FORM 600
$30.60/ea
Usually ships within 8 to 12 Days
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Mersen
Mfg Catalog # ATM30/50
North Coast Part # 14864

Features

  • For supplemental protection of small motors and transformers
  • Extended ratings for special protection of capacitors and circuits with high inrush currents
  • 600VDC ratings for a wide variety of applications including photovoltaic and solar applications.
  • Can be used with UltraSafe™ fuse holders
  • 1 1/2" x 13/32" (10mm x 38mm) dimensions

Applications

  • Supplemental protection of of circuits up to 600VAC and 600VDC with 100kA I.R.

Specifications

  • Sell Pack Height: 2.12 in
  • Product Weight: 0.012 lb
  • Product Diameter: 0.41 in
  • Product Length: 1.5 in
  • Mounting: Clip
  • AC Max I.R./Breaking Capacity: I1: 100 kA
  • ROHS Compliant: Yes
  • Sell Pack Weight: 0.13 lb
  • Sell Pack Width: 0.88 in
  • Sell Pack Length: 1.62 in
  • Body/Insulating Material: GMG
  • Connection/Terminal Type: Ferrule
  • Sell Pack Quantity: 10 Each
  • Speed/Characteristic: Fast-Acting
  • Ampere Rating: 30 A
  • Fuse Class: Midget
  • Connection/Terminal Material: Tin-Plated Copper
  • Rated voltage AC UL: 600 V

Approvals & Standards

  • UL listed to standard 248-14 (1/10 to 30A) File E33925
  • DC Listed to UL Standard 248-14 (1/10 to 30A)
  • CSA Certified to Standard C22.2 No. 248.14 (1/10 to 30A)
  • Approvals & Standards

Overview

UPC 78200190098
Family Brand Name Ferraz Shawmut
GTiN 00782001900984
Length 1.5 in
Type Fast Acting
Diameter 0.41 in
Terminal Type Ferrule
Applications For Supplemental Protection of a Wide Variety of Circuits up to 600 VAC and 600 VDC with 100 kA I.R
Mounting Type Clip
Weight 0.012 lb
Pkg Qty 10
Class M
Insulation Material GMG
Construction GMG
Contact Material Tin Plated Copper
TC Connection Ferrule
Amperage 30 Amp
Blade Dimensions 10 mm dia x 38 mm L
Interrupt Rating 100 kA
Terminal Material Tin-Plated Copper
Sub Brand Amp-Trap
Rated Voltage AC 600 V
Fuse Class Midget
