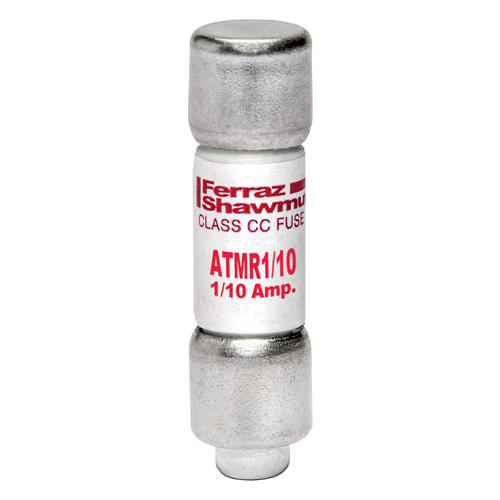

Ferraz Shawmut ATMR1/10 1/10 Amp 600 Volt Class CC Fast Acting Fuse
Product image thumbnail 0
Product image thumbnail 1
$26.26/ea
In Stock | 57 available at 1 location
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Mersen
Mfg Catalog # ATMR1/10
North Coast Part # 209929

Features

  • Rejection-style design prevents replacement errors when used with recommended fuse blocks
  • Versatile design for individual component and branch circuit protection

Applications

  • Control circuits
  • Lighting
  • General loads
  • Branch circuit protection

Approvals & Standards

  • UL Listed to Standard 248-4 File E2137
  • CSA Certified to Standard C22.2 No. 248.4
  • DC listed to UL Standard 248

Specifications

  • Rated voltage AC UL: 600 V
  • Rated voltage DC UL: 600 V
  • Frequency: 50/60 Hz
  • Ampere Rating: 0.1 A
  • ROHS Compliant: Yes
  • Fuse Class: Class CC
  • Speed/Characteristic: Fast-Acting
  • Mounting: Clip
  • AC Max I.R./Breaking Capacity: I1: 200 kA
  • Connection/Terminal Material: Tin-Plated Copper
  • Connection/Terminal Type: Ferrule
  • Body/Insulating Material: GMG

Product Dimensions

  • Product Weight: 0.02 lb
  • Product Diameter: 0.41 in
  • Product Length: 1.5 in

Packaging Dimensions

  • Sell Pack Quantity: 10 Each
  • Sell Pack Weight: 0.21 lb
  • Sell Pack Width: 0.88 in
  • Sell Pack Length: 1.62 in
  • Sell Pack Height: 2.12 in

Overview

UPC 78200190336
Family Brand Name Ferraz Shawmut
GTiN 00782001903367
Length 1.5 in
Type North American, Fast-Acting
Diameter 0.41 in
Terminal Type Ferrule
Applications Control Circuits, Lighting, General Loads, Branch Circuit Protection
Mounting Type Clip
Weight 0.02 lb
Pkg Qty 10
Class CC
Insulation Material GMG
Construction Fiberglass
TC Connection Ferrule
Amperage 0.1 Amp
Interrupt Rating 200 kA at 600 VAC, 100 kA at 600 VDC
Terminal Material Tin-Plated Copper
Sub Brand Amp-Trap
Rated Voltage AC 600 V
Rated Voltage DC 600 V
Fuse Class Class CC
Voltage 600 VAC/VDC
Frequency 50 Hz
