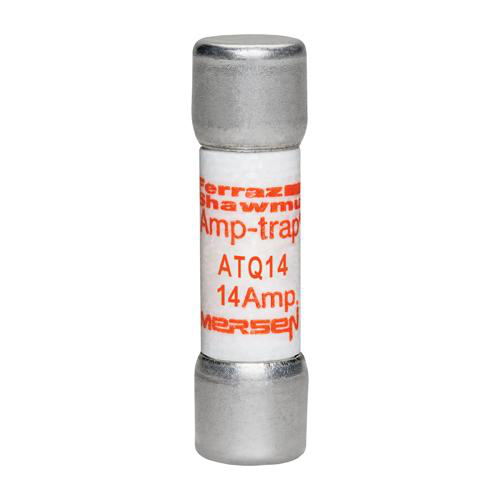

FERRAZ ATQ14 500V 14A TD MIDGET FUS

Features

• Numerous ratings for a wide variety of applications up to 500VAC
• Time-delay (12 seconds at 200 percent rating) for circuits with high inrush current
• Can be used with UltraSafe™ Fuse holders
• 1 1/2" x 13/32" (10 mm x 38 mm) dimensions

Applications

• Supplemental protection of lighting, solenoid, motor and transformer circuits

Specifications

• Sell Pack Height: 2.12 in
• Product Weight: 0.012 lb
• Product Diameter: 0.41 in
• Product Length: 1.5 in
• Mounting: Clip
• AC Max I.R./Breaking Capacity: I1: 10 kA
• ROHS Compliant: Yes
• Sell Pack Weight: 0.13 lb
• Sell Pack Width: 0.88 in
• Sell Pack Length: 1.62 in
• Body/Insulating Material: GMG
• Connection/Terminal Type: Ferrule
• Sell Pack Quantity: 10 Each
• Speed/Characteristic: Time Delay
• Ampere Rating: 14 A
• Fuse Class: Midget
• Connection/Terminal Material: Tin-Plated Copper
• Rated voltage AC UL: 500 V

Approvals & Standards

• UL listed to standard 248-14 File E33925
• CSA Certified to Standard C22.2 No. 248.14
