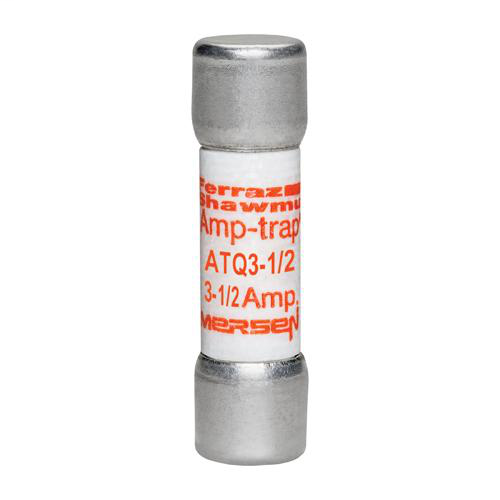

Ferraz Shawmut ATQ3-1/2 3-1/2 Amp 500 Volt Glass Melamine Laminated Time Delay Midget Fuse
Product image thumbnail 0
Product image thumbnail 1
Product image thumbnail 2
Product image thumbnail 3
$27.89/ea
Usually ships within 8 to 12 Days
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Mersen
Mfg Catalog # ATQ3-1/2
North Coast Part # 13462

Features

  • Numerous ratings for a wide variety of applications up to 500VAC
  • Time-delay (12 seconds at 200 percent rating) for circuits with high inrush current
  • Can be used with UltraSafe™ Fuse holders
  • 1 1/2" x 13/32" (10 mm x 38 mm) dimensions

Applications

  • Supplemental protection of lighting, solenoid, motor and transformer circuits

Approvals & Standards

  • UL listed to standard 248-14 File E33925
  • CSA Certified to Standard C22.2 No. 248.14

Specifications

  • Rated voltage AC UL: 500 V
  • Ampere Rating: 3.5 A
  • Fuse Class: Midget
  • Speed/Characteristic: Time Delay
  • Mounting: Clip
  • AC Max I.R./Breaking Capacity: I1: 10 kA
  • Connection/Terminal Material: Tin-Plated Copper
  • Connection/Terminal Type: Ferrule
  • Body/Insulating Material: GMG

Product Dimensions

  • Product Weight: 0.012 lb
  • Product Diameter: 0.41 in
  • Product Length: 1.5 in

Packaging Dimensions

  • Sell Pack Quantity: 10 Each
  • Sell Pack Weight: 0.13 lb
  • Sell Pack Width: 0.88 in
  • Sell Pack Length: 1.62 in
  • Sell Pack Height: 2.12 in

Categories

Overview

UPC 78200190608
Family Brand Name Ferraz Shawmut
Item Long Description Amp-Trap ATQ midget time-delay fuses are rated 500VAC with 42 ampere ratings from 1/10 to 30A. They are an excellent choice for supplemental protection of circuits where the available short circuit current does not exceed 10,000A. (Not for Branch Circuit Protection)
GTiN 00782001906085
Length 1.5 in
Type Time Delay
Diameter 0.41 in
Terminal Type Ferrule
Applications Supplemental Protection of Lighting, Solenoid, Motor and Transformer Circuits
Mounting Type Clip
Weight 0.012 lb
Pkg Qty 10
Class M
Insulation Material GMG
TC Connection Ferrule
Amperage 3.5 Amp
Blade Dimensions 10 mm dia x 38 mm L
Interrupt Rating 10 kA
Terminal Material Tin-Plated Copper
Rated Voltage AC 500 V
Fuse Class Class M
Voltage 500 VAC
