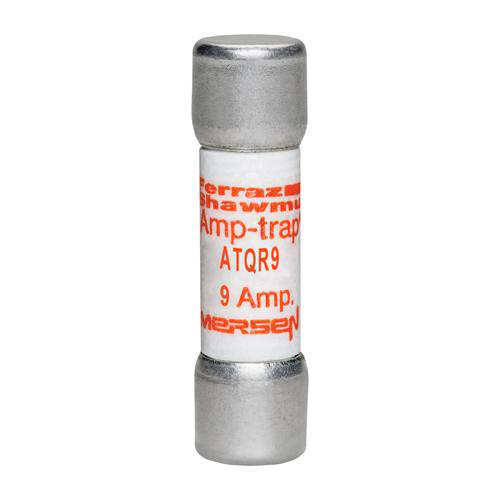

Ferraz Shawmut ATQR9 9 Amp 600 Volt Glass Melamine Laminated Class CC Rejection Time Delay Fuse

Features

• Time-delay for control transformer inrush loads without nuisance opening
• Highly current-limiting for low peak let-thru current
• Rejection-style design prevents replacement errors (when used with recommended fuse blocks)
• High visibility orange label ensures instant brand recognition, and simplifies replacement
• Metal-embossed date and catalog number for traceability and lasting identification
• Fiberglass body provides dimensional stability in harsh industrial settings
• High-grade silica filler ensures fast arc quenching and high current limitation

Applications

• Control transformers
• Solenoids
• Inductive loads
• Lighting, heating & general-purpose loads

Specifications

• Sell Pack Height: 2.12 in
• Product Weight: 0.02 lb
• Product Diameter: 0.41 in
• Product Length: 1.5 in
• Mounting: Clip
• Ampere Rating: 9 A
• AC Max I.R./Breaking Capacity: I1: 200 kA
• ROHS Compliant: Yes
• Sell Pack Weight: 0.21 lb
• Sell Pack Width: 0.88 in
• Sell Pack Length: 1.62 in
• Body/Insulating Material: GMG
• Connection/Terminal Type: Ferrule
• Sell Pack Quantity: 10 Each
• Speed/Characteristic: Time Delay
• Fuse Class: Class CC
• Connection/Terminal Material: Tin-Plated Copper
• Rated voltage AC UL: 600 V
• Rated voltage DC UL: 300 V

Approvals & Standards

• UL listed to standard 248-4 File E2137
• DC listed to UL standard 248
• CSA certified to standard C22.2 No. 248.4
