Manufacturer Mersen
Mfg Catalog # CP500C5
North Coast Part # 267730


  • Fiberglass bodies for dimensional stability in harsh environments
  • Catalog number stamped into terminal for permanent identification
  • Crimp terminals for aluminum cable include oxide inhibitor
  • Molded rubber boots or heat shrinkable tubing available for insulation and protection
  • Current limiting device
  • Permitted by National Electrical Code®


  • UL listed to File E305297


  • Max Operating Temp: 80 °C
  • Max Storage Temp: 80 °C
  • Min Storage Temp: -25 °C
  • Rated Voltage Ac Ul: 600 V
  • Ac Max I R Breaking Capacity I1: 200 kA
  • Product Diameter: 1.88 in
  • Country Of Origin: MX
  • Product Line: CP
  • Product Brand: Amp-Trap®
  • Body Insulating Material: GMG
  • Connection Terminal Material: Tin-Plated Copper And Tin-Plated Brass
  • Connection Terminal Type: Blade To Blade
  • Mounting: Bolted


UPC 78200193194
Family Brand Name Ferraz Shawmut

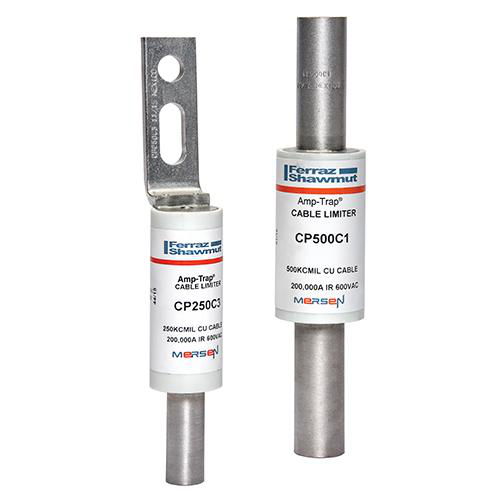

Item Long Description Mersen CP cable protectors are special purpose limiters which are crimped or bolted to cables to clear and isolate faults quickly, increasing the reliability of service entrance and distribution runs. They are current-limiting with a 200,000A interrupting rating, yet will carry low cable overloads which are handled by standard protective devices. Cable protectors are rated in terms of cable size and material (Al or Cu). Heat shrinkable (HS) tubing can be specified for field installation. For cables smaller than 4/0, class J fuses can be used.
GTiN 00782001931940
Length 10.37 in
Type Cable Protector
Diameter 1.88 in
Terminal Type Blade To Blade
Applications Multiple cables in a run, underground cables
Mounting Type Bolted
Weight 2.47 lb
Pkg Qty 1
Insulation Material GMG
TC Connection Blade To Blade
Interrupt Rating 200 kA
Terminal Material Tin-Plated Brass,Tin-Plated Copper
Rated Voltage AC 600 V
Voltage 600 Volt
Country of Origin Mexico
Max Operating Temperature 80 C
