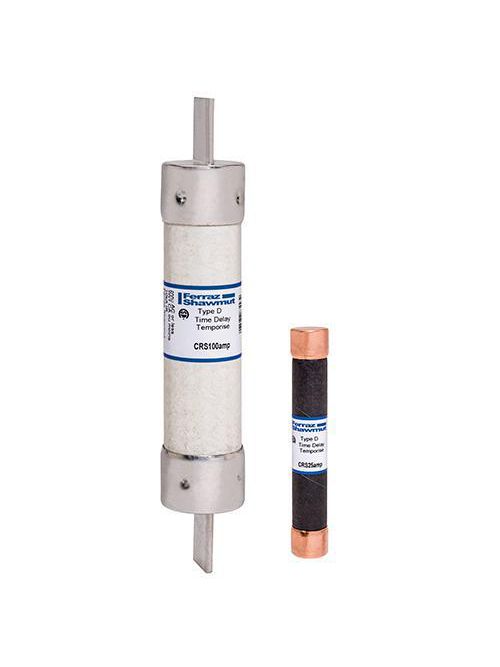

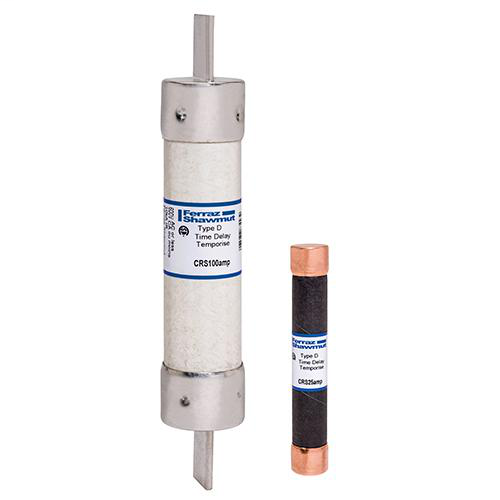

FERRAZ CRS200 FUSEDUAL.ELE T/D (600
Product image thumbnail 0
Product image thumbnail 1
Product image thumbnail 2
$297.87/ea
Usually ships within 8 to 12 Days
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Mersen
Mfg Catalog # CRS200
North Coast Part # 488147

Features

  • Type D fuses satisfy the Canadian Electrical Code requirement for low melting-point fuses

Approvals & Standards

  • CSA Certified

Specifications

  • Rated voltage AC UL: 600 V
  • Ampere Rating: 200 A
  • ROHS Compliant: Yes
  • Fuse Class: Class H
  • Mounting: Bolted
  • AC Max I.R./Breaking Capacity: I1: 10 kA
  • Connection/Terminal Type: Blade
  • Body/Insulating Material: Paper

Product Dimensions

  • Product Weight: 1.54 lb
  • Product Diameter: 1.88 in
  • Product Length: 9.63 in

Packaging Dimensions

  • Sell Pack Quantity: 1 Each
  • Sell Pack Weight: 1.62 lb
  • Sell Pack Width: 1.94 in
  • Sell Pack Length: 10 in
  • Sell Pack Height: 1.94 in

Overview

UPC 06893883448
Family Brand Name Ferraz Shawmut
Item Long Description Mersen CRN and CRS fuses are standard fuses, Type D, with 10kA short circuit rating. Type D fuses satisfy the Canadian Electrical Code requirement for low melting-point fuses
GTiN 00068938834487
Length 9.63 in
Type Time-Delay
Diameter 1.88 in
Terminal Type Blade
Mounting Type Bolted
Weight 1.54 lb
Pkg Qty 1
Class H
Insulation Material Paper
Amperage 200 Amp
Rated Voltage AC 600 V
Fuse Class Class H
Voltage 600 VAC
