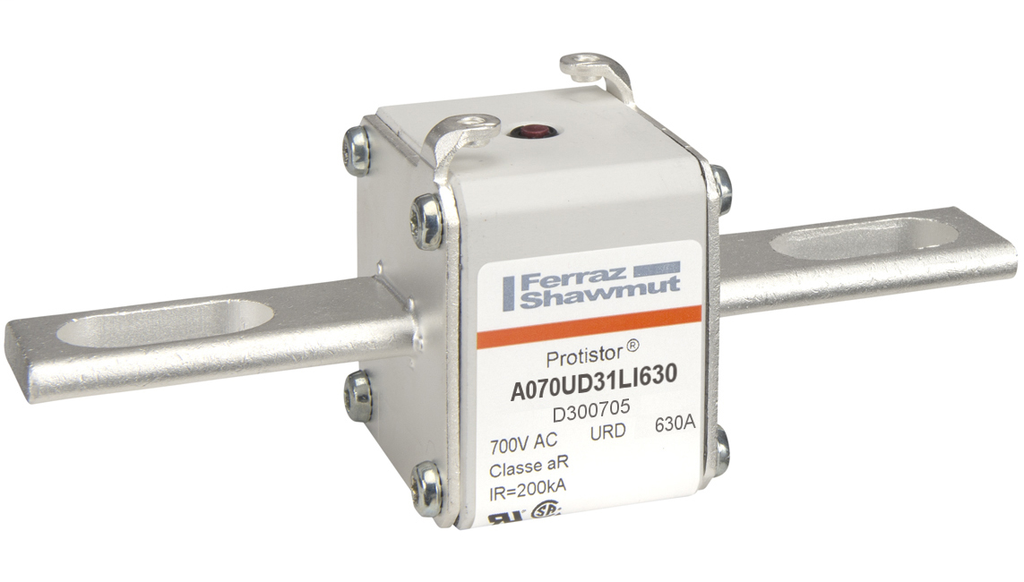

FERRAZ D300705 A070URD31LI0630
Product image thumbnail 0
Product image thumbnail 1
Product image thumbnail 2
$318.74/ea
Usually ships within 8 to 12 Days
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Mersen
Mfg Catalog # D300705
North Coast Part # 885761

Features

  • Multiple body sizes and terminals or blades combination
  • aR Class according to IEC 60269-4 and VDE 636-23
  • Very low I²t for improved semiconductor protection
  • Ultra fast acting
  • Current limiting
  • Superior cycling capability

Certifications

  • IEC 60269.4 Compliance
  • UL/CSA Recognized E76491
  • CCC GB 1539.4

Specifications

  • Ampere Rating: 630 A
  • Rated Voltage Ac Iec: 690 V
  • Rated Voltage Ac Ul: 700 V
  • Ac Max I R Breaking Capacity I1: 200 kA
  • Clearing I2T At Rated Voltage: 430000 A²s
  • Melting I2T: 75000 A²s
  • Power Dissipation At Rated Current Value: 85 W
  • Country Of Origin: FR
  • Product Line: Protistor® size 31 aR, 690VAC (IEC) / 700VAC (UL)
  • Product Brand: Protistor®
  • Body Insulating Material: Ceramic
  • Connection Terminal Material: Silver-Plated Copper
  • Connection Terminal Type: Slotted Blades
  • Fuse Size: 31
  • Speed Characteristic: aR
  • Mounting: Bolted

Overview

UPC 78200124066
Family Brand Name Ferraz Shawmut
Item Long Description The 690/700V Protistor fuse-links provide maximum flexibility in equipment design and ultimate protection for today's power conversion equipment. These aR ultra-fast acting square body fuse-links are available in different body sizes, each size having multiple worldwide acceptable mounting styles.They have been engineered to provide state-of-the-art protection for semiconductors: diodes, thyristors and IGBT devices. They are assembled with die-cut elements embedded in solidified sand, which helps control arcing characteristics for a lower It and high interrupting rating level. All contact surfaces are silver plated and all hardware is non-magnetic.Each fuse-link can be equipped with a low voltage trip-indicator which can operate a field mountable microswitch.
GTiN 03605340332476
Length 5.85 in
Width 2.01 in
Terminal Type Slotted Blades
Mounting Type Bolted
Height 2.22 in
Weight 0.92 lb
Pkg Qty 3
Insulation Material Ceramic
Amperage 630 Amp
Indicator Striker
Terminal Material Silver-Plated Copper
Rated Voltage AC 700 V
Voltage 700 Volt
Country of Origin France
