Usually ships within 8 to 12 Days
Already a Customer? Log in to view your pricing

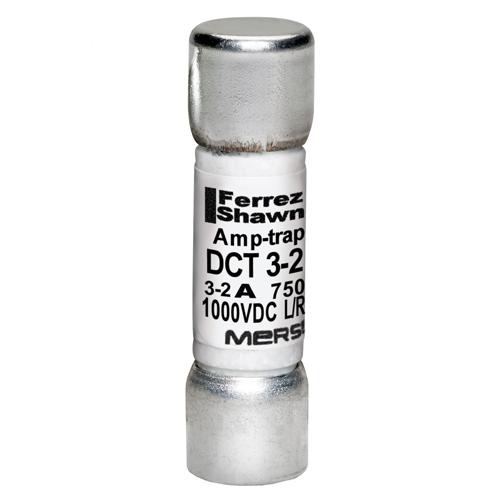

Manufacturer Mersen
Mfg Catalog # DCT3-2
North Coast Part # 1890892


  • Low minimum breaking capacity (MBC)
  • Compact size: 10 x 38 mm (13/32" x 1-1/2") size internationally accepted
  • Ferrule mount 1 to 30A for design versatility
  • Can be used with UltraSafeTM fuse holders USM series
  • 1 1/2" x 13/32" (10 mm x 38 mm) dimensions


  • DC traction equipment
  • Multi-meters
  • Photovoltaic systems
  • Semiconductor protection

Approvals & Standards

  • UL Recognized component File E60314


  • Rated voltage AC UL: 750 V
  • Rated voltage DC UL: 1000 V
  • Ampere Rating: 3 A
  • ROHS Compliant: Yes
  • Fuse Class: Midget
  • Speed/Characteristic: Fast-Acting
  • Mounting: Clip
  • AC Max I.R./Breaking Capacity: I1: 100 kA
  • Connection/Terminal Material: Tin-Plated Copper
  • Connection/Terminal Type: Ferrule
  • Body/Insulating Material: GMG

Product Dimensions

  • Product Weight: 0.012 lb
  • Product Diameter: 0.41 in
  • Product Length: 1.5 in

Packaging Dimensions

  • Sell Pack Quantity: 10 Each
  • Sell Pack Weight: 0.13 lb
  • Sell Pack Width: 0.88 in
  • Sell Pack Length: 1.62 in
  • Sell Pack Height: 2.12 in


Family Brand Name Ferraz Shawmut
Product UPC 78200141007
GTiN 00782001410070
Length 1-1/2 Inch
Type Supplemental Protection
Diameter 0.41 in
Terminal Type Ferrule
Applications Multi meters; 690V Transformers; DC Traction Equipment
Mounting Type Clip
Weight 0.012 lb
Pkg Qty 10
Class M
Insulation Material GMG
Amperage 3 Amp
Response Time Fast-Acting
Interrupt Rating 100 kA
Terminal Material Tin-Plated Copper
Rated Voltage AC 750 V
Rated Voltage DC 1000 V
Fuse Class Midget
Voltage 750 VAC
