Ferraz Shawmut FEB-81-81 1-Pole Inline Midget Fuse Holder
Product image thumbnail 0
Product image thumbnail 1
Product image thumbnail 2
$42.06/ea
Usually ships within 8 to 12 Days
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Mersen
Mfg Catalog # FEB-81-81
North Coast Part # 161562

Features

  • Breakaway version quickly disconnects line side during pole knockdown in compliance with state and federal highway commission standards
  • 3 O-rings per pole for water tight applications
  • Colored O-rings for quick detection
  • Single and dual poles
  • Accepts midget or Class CC fuses
  • Wide assortment of terminal variations
  • High heat, impact resistant insulator
  • Captive nut or screw for quick installations
  • Polarized dual pole provides simultaneous disconnection
  • Permanently installed neutral versions quickly identified by white nuts
  • Tulip fuse clip for improved contact and low losses
  • Environmentally friendly-no lead solder used
  • Highly visible catalog number even with insulation boots installed
  • Wire gauge size identified on insulation boots for quick, accurate trimming
  • Time delay for motor starting and transformer inrush

Certifications

  • UL Listed Class CC Guide IZLT, File E52283
  • UL Recognized Component Midget Guide IZLT2, File E52283
  • CSA Certified Class CC and Midget Class 6225, File 32169

Specifications

  • Frequency Hz: 50/60 Hz
  • Max Operating Temp: 80 °C
  • Max Storage Temp: 80 °C
  • Min Storage Temp: -25 °C
  • Short Circuit Current Rating Sccr: 100 kA
  • Ampere Rating: 30 A
  • Max Fuse Rating: 30 A
  • Rated Voltage Ac Ul: 600 V
  • Rated Voltage Dc Ul: 600 V
  • Torque Rating: 35 lb-in
  • Country Of Origin: MX
  • Product Line: FEB - Midget
  • Body Insulating Material: Polyethylene
  • Installation Mounting: In-Line
  • Number Of Poles: 1-pole
  • Fuse Installation Method: Clip-in
  • Wire Connections: Single Set Screw

Overview

UPC 78200130092
Family Brand Name Ferraz Shawmut

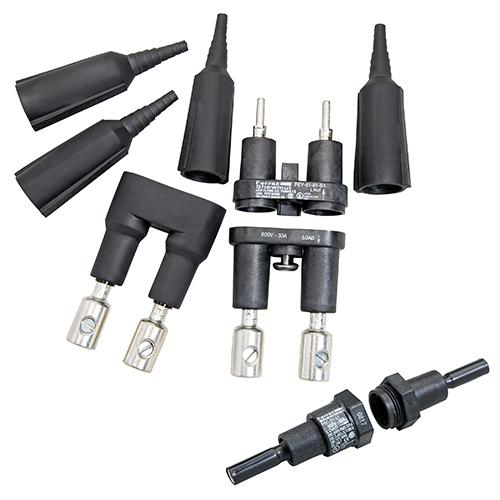

Item Long Description Mersens complete line of single and dual pole in-line fuse holders accommodate either 1-1/2" x 13/32" (10 x 38 mm) midget or Class CC fuses. The fuse holders are designed for quick installation. Securing nuts or screws are captive thus speeding installation by reducing the need to locate and assemble loose components in the field. Three internal O-rings per pole seal the fuse holder providing a waterresistant compartment for the fuse. The captive O-rings are colored (blue for single pole and red for dual pole) for quick detection. Optional cone shaped insulator boots can be slipped on to provide a watertight seal (breakaway versions come with boots standard). Both single and dual pole versions have an optional breakaway feature which safely disconnects the load in case of a pole knockdown. Fuses remain safely encapsulated within the watertight fuse holder on the load side. Once the pole has been reinstalled the fuse holder can be easily reconnected.
GTiN 00782001300920
Length 4.3 in
Width 1 in
Type In-line Fuse Holders
Applications Street lighting Parking lot lighting Traffic signaling Sports lighting Boats and marinas Humid/corrosive environments
Mounting Type In-Line
Height 1 in
Weight 0.1 lb
Pkg Qty 10
Class M
Insulation Material Polyethylene
TC Connection Single Set Screw
Amperage 30 Amp
Fuse Interrupt Rating 30 A
Number of Poles 1 Pole
Rated Voltage AC 600 V
Rated Voltage DC 600 V
Fuse Class Midget
Voltage 600 Volt
Fuse Type Midget
Country of Origin Mexico
Frequency 50 Hz
Max Operating Temperature 80 C
Torque Rating 35 lb-in
