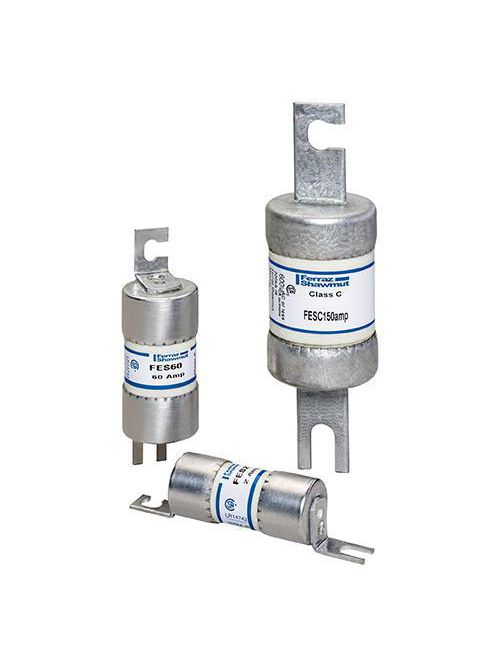

FERRAZ FES30 FUSECLASS C FORM II
Product image thumbnail 0
Product image thumbnail 1
$61.88/ea
Usually ships within 8 to 12 Days
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Mersen
Mfg Catalog # FES30
North Coast Part # 63529

Features

  • BS88 dimensions
  • Fast-acting

Applications

  • Short circuit and back-up protection of motor controllers and components

Approvals & Standards

  • CSA Certified HRCII-MISC
  • IEC 269-2-1

Specifications

  • Rated voltage AC UL: 600 V
  • Rated voltage DC UL: 460 V
  • Ampere Rating: 30 A
  • ROHS Compliant: Yes
  • Fuse Class: Class C
  • Mounting: Bolted
  • AC Max I.R./Breaking Capacity: I1: 200 kA
  • Connection/Terminal Type: Blade
  • Body/Insulating Material: PolyTube

Product Dimensions

  • Product Weight: 0.2 lb
  • Product Diameter: 0.81 in
  • Product Length: 3.31 in

Packaging Dimensions

  • Sell Pack Quantity: 10 Each
  • Sell Pack Weight: 2.1 lb
  • Sell Pack Width: 4.19 in
  • Sell Pack Length: 0.94 in
  • Sell Pack Height: 7.56 in

Overview

UPC 06893890404
Family Brand Name Ferraz Shawmut
GTiN 00068938904043
Length 3.31 in
Type Canadian
Diameter 0.81 in
Terminal Type Blade
Applications For Short Circuit and Back-Up Protection of Motor Controllers and Components
Mounting Type Bolt-On
Weight 0.2 lb
Pkg Qty 10
Class C
Insulation Material PolyTube
Amperage 30 Amp
Interrupt Rating 200 kA
Rated Voltage AC 600 V
Rated Voltage DC 460 V
Fuse Class Class C
Voltage 600 VAC
