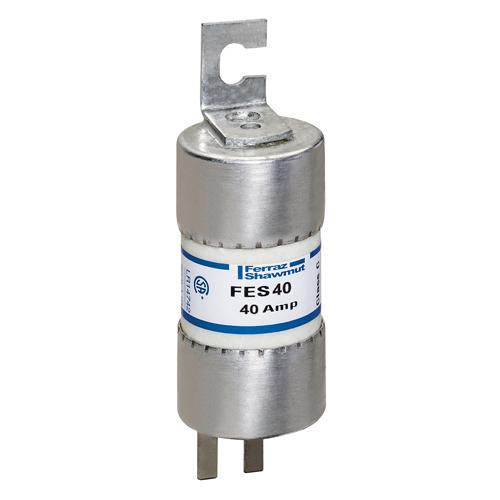

FERRAZ FES40 FUSECLASS C FORM II
Product image thumbnail 0
Product image thumbnail 1
Product image thumbnail 2
$108.17/ea
Usually ships within 8 to 12 Days
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Mersen
Mfg Catalog # FES40
North Coast Part # 63655

Features

  • BS88 dimensions
  • Fast-acting

Applications

  • Short circuit and back-up protection of motor controllers and components

Approvals & Standards

  • CSA Certified HRCII-MISC
  • IEC 269-2-1

Specifications

  • Rated voltage AC UL: 600 V
  • Rated voltage DC UL: 460 V
  • Ampere Rating: 40 A
  • ROHS Compliant: Yes
  • Fuse Class: Class C
  • Mounting: Bolted
  • AC Max I.R./Breaking Capacity: I1: 200 kA
  • Connection/Terminal Type: Blade
  • Body/Insulating Material: PolyTube

Product Dimensions

  • Product Weight: 0.25 lb
  • Product Diameter: 1.06 in
  • Product Length: 3.44 in

Packaging Dimensions

  • Sell Pack Quantity: 10 Each
  • Sell Pack Weight: 2.63 lb
  • Sell Pack Width: 3.44 in
  • Sell Pack Length: 2.31 in
  • Sell Pack Height: 4.88 in

Overview

UPC 06893890405
Family Brand Name Ferraz Shawmut
Item Long Description Ferraz Shawmut Class C fuses have British standard (BS88) dimensions and are exact replacements for the British fuses and older HRCII-C fuses. Class C fuses are not dimensionally or electrically interchangeable with other North American fuses. They feature ceramic bodies and bolt-in mounting. They are for short-circuit protection only, in motor controllers, for example, where overload protection is provided by an overload relay.
GTiN 00068938904050
Length 3.44 in
Type Canadian
Diameter 1.06 in
Terminal Type Blade
Applications For Short Circuit and Back-Up Protection of Motor Controllers and Components
Mounting Type Bolt-On
Weight 0.25 lb
Pkg Qty 10
Class C
Insulation Material PolyTube
Amperage 40 Amp
Interrupt Rating 200 kA
Rated Voltage AC 600 V
Rated Voltage DC 460 V
Fuse Class Class C
Voltage 600 VAC
