Manufacturer Mersen

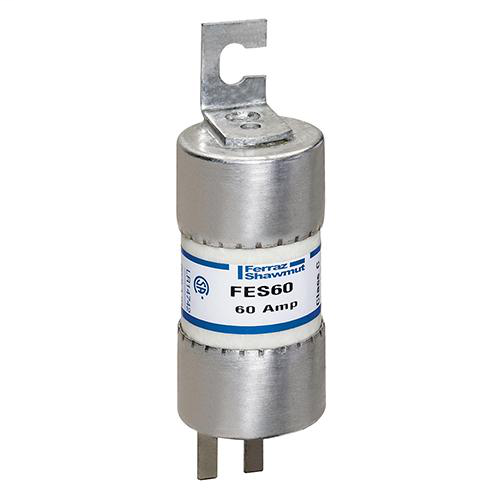

Mfg Catalog # FES60
North Coast Part # 63870


  • BS88 dimensions
  • Fast-acting


  • Short circuit and back-up protection of motor controllers and components


  • Sell Pack Height: 4.88 in
  • Sell Pack Width: 3.44 in
  • Product Weight: 0.25 lb
  • Body/Insulating Material: PolyTube
  • Connection/Terminal Type: Blade
  • Sell Pack Quantity: 10 Each
  • Sell Pack Weight: 2.63 lb
  • Fuse Class: Class C
  • Rated voltage AC UL: 600 V
  • Rated voltage DC UL: 460 V
  • Product Diameter: 1.06 in
  • Mounting: Bolted
  • Ampere Rating: 60 A
  • Sell Pack Length: 2.31 in
  • Product Length: 3.44 in
  • AC Max I.R./Breaking Capacity: I1: 200 kA
  • ROHS Compliant: Yes

Approvals & Standards

  • CSA Certified HRCII-MISC
  • IEC 269-2-1
  • Approvals & Standards



UPC 06893890406
Family Brand Name Ferraz Shawmut
GTiN 00068938904067
Length 3.44 in
Type Canadian
Diameter 1.06 in
Terminal Type Blade
Applications For Short Circuit and Back-Up Protection of Motor Controllers and Components
Mounting Type Bolt-On
Weight 0.25 lb
Pkg Qty 10
Class C
Insulation Material PolyTube
Amperage 60 Amp
Interrupt Rating 200 kA
Rated Voltage AC 600 V
Rated Voltage DC 460 V
Fuse Class Class C
Voltage null
