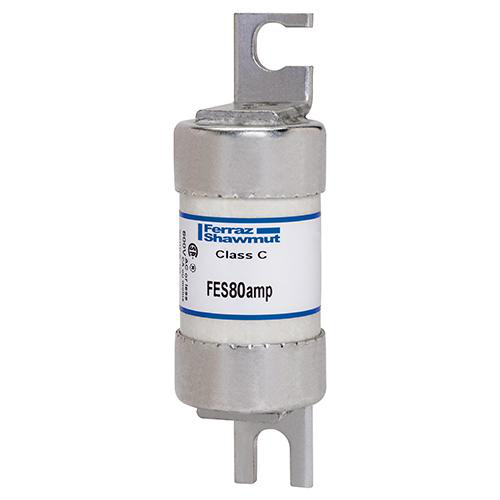

FERRAZ FES80 FUSECLASS C FORM II
$161.97/ea
Usually ships within 8 to 12 Days
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Mersen
Mfg Catalog # FES80
North Coast Part # 64073

Features

  • BS88 dimensions
  • Fast-acting

Applications

  • Short circuit and back-up protection of motor controllers and components

Specifications

  • Sell Pack Height: 6.75 in
  • Sell Pack Width: 5.25 in
  • Product Weight: 0.75 lb
  • Body/Insulating Material: PolyTube
  • Connection/Terminal Type: Blade
  • Sell Pack Quantity: 5 Each
  • Sell Pack Weight: 3.94 lb
  • Fuse Class: Class C
  • Rated voltage AC UL: 600 V
  • Rated voltage DC UL: 350 V
  • Product Diameter: 1.34 in
  • Mounting: Bolted
  • Ampere Rating: 80 A
  • Sell Pack Length: 2.12 in
  • Product Length: 4.31 in
  • AC Max I.R./Breaking Capacity: I1: 200 kA
  • ROHS Compliant: Yes

Approvals & Standards

  • CSA Certified HRCII-MISC
  • IEC 269-2-1
  • Approvals & Standards

Categories

Overview

UPC 06893890422
Family Brand Name Ferraz Shawmut
GTiN 00068938904227
Length 4.31 in
Type Canadian
Diameter 1.34 in
Terminal Type Blade
Applications For Short Circuit and Back-Up Protection of Motor Controllers and Components
Mounting Type Bolt-On
Weight 0.75 lb
Pkg Qty 5
Class C
Insulation Material PolyTube
Amperage 80 Amp
Interrupt Rating 200 kA
Rated Voltage AC 600 V
Rated Voltage DC 350 V
Fuse Class Class C
Voltage null
